621450x4NB Murray - Single Stage Snow Thrower (2003)

Model: 621450x4NB

Back To Assemblies

Save Part Not Listed?
product name

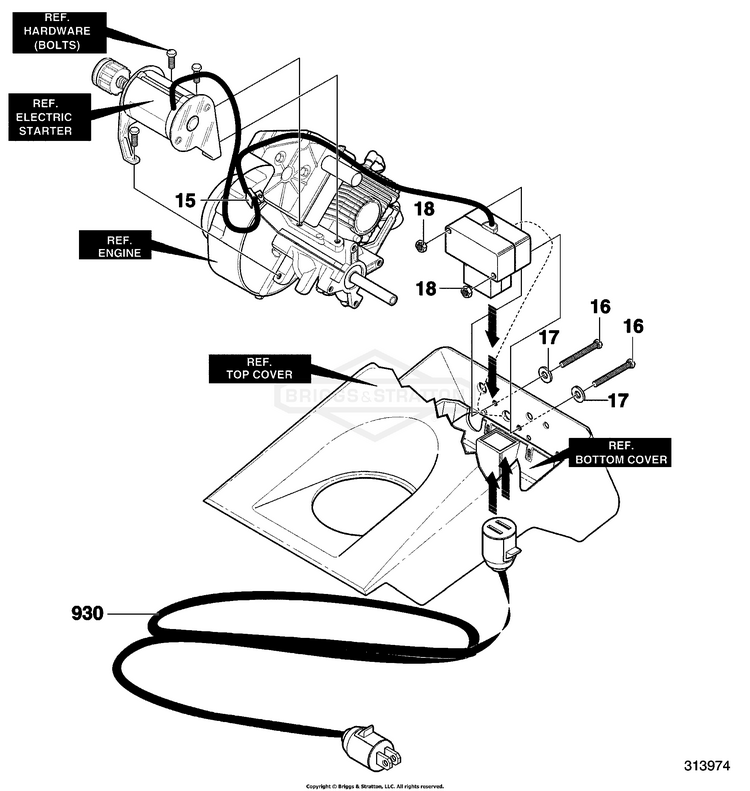

Electric Starter

...
...
15
RETAINER BS-57569
...
16
SCREW #8-32X3.00 BS-311633MA
...
17
WASHER, FLAT BS-414106MA
...
18
NUT, #8-32X3.00 BS-271163MA
...
930
CORD,EL 10FT 125V 2WI BS-56023MA
