621450x4D Murray - Single Stage Snow Thrower (2000)

Model: 621450x4D

Back To Assemblies

Save Part Not Listed?
product name

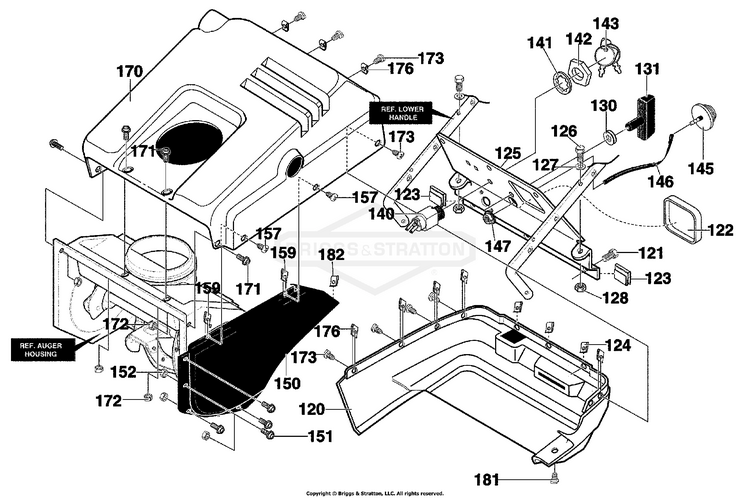

Top Cover Assembly

...
...
120
COVER, BOTTOM BS-340097MA
...
121
SCREW, 1/4-14X .75 SL BS-313685MA
...
122
PANEL, SPARK ACCESS BS-761538MA
...
123
CLIP, "S" TINNERMAN BS-313057
...
124
NUT, 1/4-10 SPEED J TYPE BS-578109MA
...
125
CONTROL PANEL BS-761631-853
...
126
BOLT, 1/4-20 X 1-1/4" BS-5025010X10SM
...
127
WASHER BS-703332
...
128
NUT, 1/4-20 BS-703251
...
130
GROMMET & WASHER BS-57587MA
...
131
KNOB T BS-333643
...
140
SWITCH, IGNIT. BS-56992MA
...
141
WASHER, INTERNAL LOCK BS-313683MA
...
142
NUT. 5/8-32 BS-300193MA
...
143
SET, Key BS-691959
...
145
PRIMER, Carburetor BS-695750
...
146
HOSE PRIM 9.50LG BS-335507MA
...
147
NUT, 1/4-20 REGHEXKEPS BS-271172
...
150
COVER, BELT BS-340089MA
...
151
SCREW, 10-24X.50 BS-12342MA
...
152
NUT#10-24 MCLEANLOCK BS-015X81MA
...
157
SCREW, 1/4-14X .75 SL BS-313685MA
...
159
NUT, 1/4-10 SPEED J TYPE BS-578109MA
...
170
COVER, TOP BS-340165
...
171
SCREW,#10-24X.50 BS-12342MA
...
172
NUT#10-24 MCLEANLOCK BS-015X81MA
...
173
SCREW, 1/4-14X .75 SL BS-313685MA
...
176
NUT, 1/4-10 SPEED J TYPE BS-578109MA
...
181
SCREW, 1/4-14X .75 SL BS-313685MA
...
182
NUT 1/4-10 SPEED J TYPE BS-578109MA
