621401x54NB Murray - Single Stage Snow Thrower (2006)

Model: 621401x54NB

Back To Assemblies

Save Part Not Listed?
product name

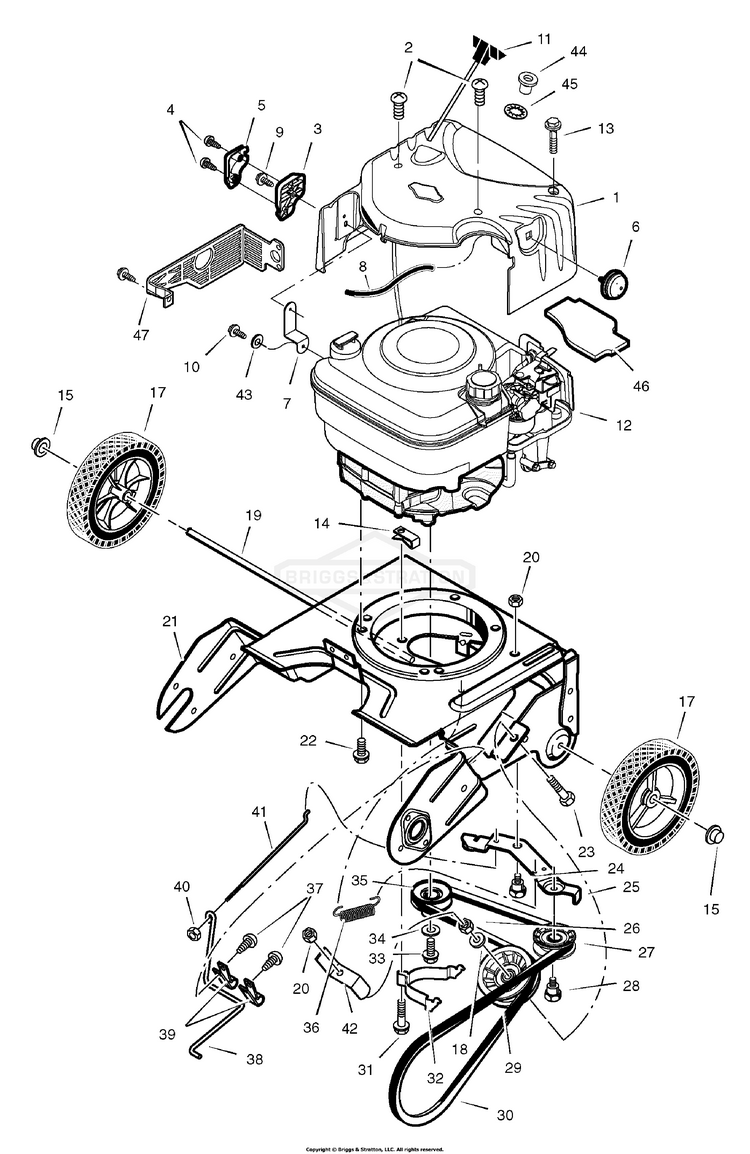

Drive Components

...
...
1
Cover, Top BS-1501812MA
...
2
Screw BS-26X316MA
...
3
Base, Chute Rod BS-1501814MA
...
4
Screw BS-26X292MA
...
5
Cover, Chute Rod BS-1501815MA
...
6
PRIMER, Carburetor BS-793382
...
7
Bracket, Engine Chute BS-1501813MA
...
8
Hose BS-1259MA
...
9
Screw BS-780212MA
...
10
Screw BS-578408MA
...
11
GRIP, Starter Rope BS-691915
...
13
Bolt BS-01X215MA
...
14
Retainer BS-578109MA
...
15
Nut, Push Cap BS-711627MA
...
17
TIRE&RIM, 7X1.50 BS-760714MA
...
18
WASHER, FLAT .406X.81 BS-71072MA
...
19
Axle BS-762280MA
...
20
Nut BS-71111MA
...
21
Frame, Motor Box BS-1502011E245MA
...
22
Bolt BS-47792MA
...
23
CAPSCREW, 3/8-16X2 BS-703589
...
24
BOLT-SHD.38-16X.499D BS-009X48MA
...
25
Bracket, Idler Arm BS-762254MA
...
26
NUT, HEX, 3/8-16 BS-703577
...
27
Pulley, V-Belt BS-762257MA
...
28
Bolt, Shoulder BS-762258MA
...
29
Pulley, Flat Idler BS-762256MA
...
30
Belt BS-37X131MA
...
31
Screw BS-315312MA
...
32
Guide, Belt BS-762267MA
...
33
BOLT, HEX, 5/16-24X1 BS-703301
...
34
WASHER, 5/16" LOCK BS-5025170SM
...
35
Pulley BS-762255MA
...
36
Spring BS-165X143MA
...
37
SCREW.25-20 S-T BS-26X263MA
...
38
Arm, Brake BS-762288MA
...
39
Clamp BS-762285MA
...
40
NUT#10-24 MCLEANLOCK BS-015X81MA
...
41
Rod, Adjustment BS-762287MA
...
42
Guide, Belt BS-762380MA
...
43
Lockwasher BS-018X35MA
...
44
Guide, Rope BS-1501919MA
...
45
Spring Grip Washer BS-028X84MA
...
46
Seal, Foam BS-1501920MA
...
47
Guard, Muffler BS-1502130MA
...
--
Book, Instruction BS-17402575M
