621381x4NA Murray - Single Stage Snow Thrower (2003)

Model: 621381x4NA

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

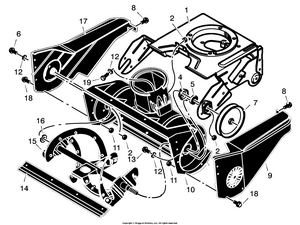

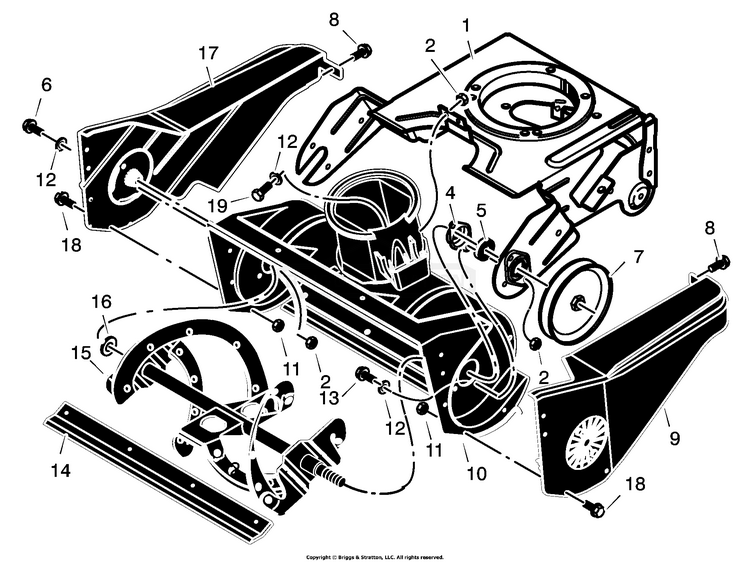

Auger Components

...
...
1
Frame, Motor Box BS-762245E245
...
2
NUT,25-20 HEX FLG CTR BS-15X143MA
...
4
Retainer, Bearing BS-580251MA
...
5
BEARING, BALL 11/16X1 BS-1705897SM
...
6
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
7
Pulley, Auger -3L 6.00" O.D. BS-338965MA
...
8
SCREW.25-20 S-T BS-26X263MA
...
9
Cover, Left Belt BS-762277MA
...
10
Assembly, Auger Housing BS-762266MA
...
11
NUT#10-24 MCLEANLOCK BS-015X81MA
...
12
Flat washer BS-71067MA
...
13
SCREW.25-20X0.62 HHC BS-579052MA
...
14
Blade, Scraper BS-55323MA
...
15
Auger Assembly BS-327072MA
...
16
Washer BS-580969MA
...
17
Cover, Right BS-762278MA
...
18
Screw BS-12342MA
...
19
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM

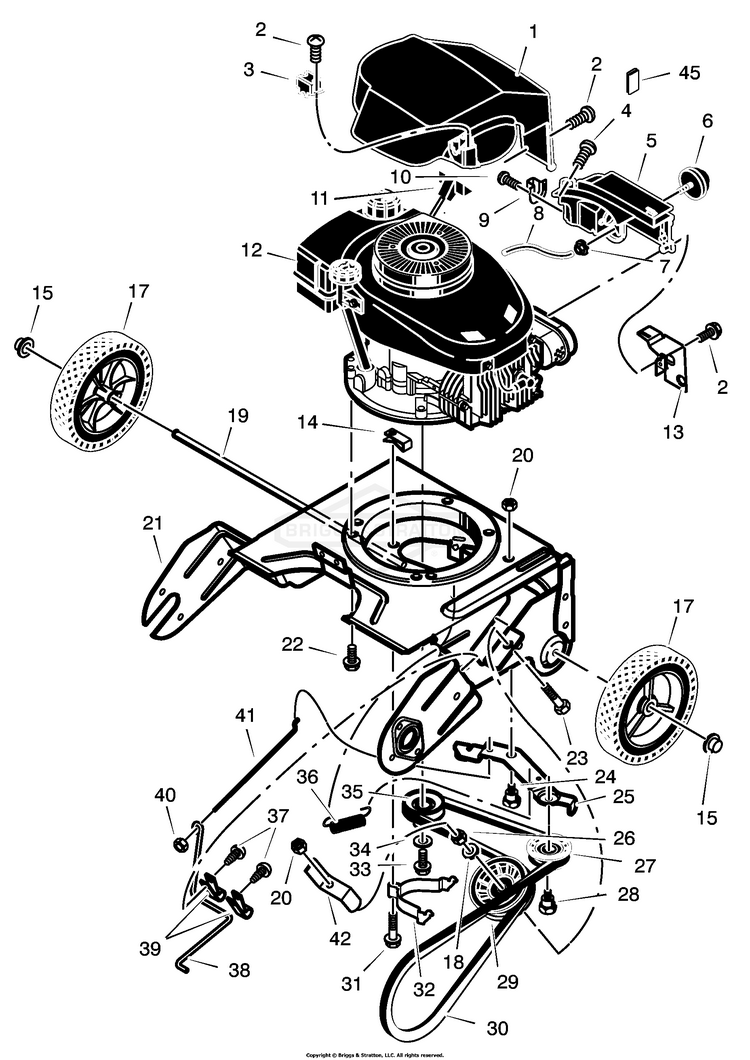

Drive Components

...
...
1
Cover, Top BS-762248MA
...
2
Screw BS-26X292MA
...
3
Bracket, Crank Rod BS-762273MA
...
4
Screw BS-26X293MA
...
5
Box, Heater BS-762366MA
...
6
Primerbulb, Red BS-762357
...
7
Nut BS-271172
...
8
Hose BS-1259MA
...
9
Deflector, Carburetor BS-762249
...
10
Screw BS-26X291
...
11
Handle, Starter BS-762358
...
13
Shield Assembly, Heat BS-762382
...
14
Retainer BS-578109MA
...
15
Nut, Push Cap BS-711627MA
...
17
TIRE&RIM, 7X1.50 BS-760714MA
...
18
Washer BS-71072
...
19
Axle BS-762280
...
20
Nut BS-71111
...
21
Frame, Motor Box BS-762245E245
...
22
Bolt BS-47792MA
...
23
Bolt BS-71007
...
24
Bolt, Shoulder BS-712233
...
25
Bracket, Idler Arm BS-762254 YZ
...
26
Nut BS-71044
...
27
Pulley, Idler -V-Belt BS-762257MA
...
28
Bolt, Shoulder BS-762258
...
29
Pulley, Flat Idler BS-762256MA
...
30
Belt BS-37X131
...
31
Screw BS-315312
...
32
Guide, Belt BS-762267
...
33
Screw BS-71015
...
34
Washer BS-71063
...
35
Pulley 2.50 X 4L .750 I.D. BS-762255MA
...
36
Spring BS-165X143MA
...
37
SCREW.25-20 S-T BS-26X263MA
...
38
Arm, Brake BS-762288
...
39
Clamp BS-762285
...
40
NUT#10-24 MCLEANLOCK BS-015X81MA
...
41
Rod, Adjustment BS-762287
...
42
Guide, Belt BS-762380
...
45
Clip, Tinnerman BS-313057
...
--
Book, Instruction BS-F-031060C

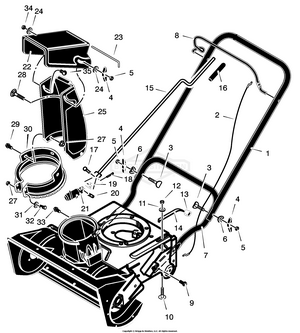

Handle & Discharge Components

...
...
1
HNDL, UPR MINI SNOW E BS-1502129E701MA
...
2
Cable, Auger Drive BS-762259MA
...
3
BOLT, 5/16-18X2.OO CU BS-337584MA
...
4
KNOB, WING 3.00 BS-1501260MA
...
5
HN, 5/16C GR5 YZ BS-7091511SM
...
6
WASHER, FORM .344 ID BS-311936MA
...
7
Handle, Lower BS-762250E701MA
...
8
Lever, Auger Drive BS-762251E701MA
...
9
Screw BS-70984
...
10
Bolt BS-340715MA
...
11
Washer BS-712123
...
12
Nut BS-780029
...
13
Bushing, Tensioner BS-762281MA
...
14
Bracket, Cable Tensioner BS-762282MA
...
15
Rod, Crank BS-762362 YZ
...
16
Grip, Crank Rod BS-762289MA
...
17
LF PIN, CLEVIS .25DX BS-578309MA
...
18
PIN, COTTER .06X .50 BS-579493MA
...
19
BLOCK,UNIVERSAL PIVOT BS-578063MA
...
20
PIN,UNIV JOINT 3/8X1. BS-578060MA
...
21
Gear, Worm BS-585196MA
...
22
CHUTE,UPR C1 BLACK BS-325847MA
...
23
Pin, Pivot BS-308931MA
...
24
WASHER BS-703350
...
25
CHUTE,LWR C1 BLACK BS-334234MA
...
27
Nut BS-302635
...
28
BOLT, 5/16-18X1.25 CA BS-302843MA
...
29
SCREW, 1/4-20X .50 HH BS-313686MA
...
30
Ring, Chute BS-762286MA
...
31
Flat washer BS-71067MA
...
32
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
33
Bolt BS-70984
...
34
IDLER SUPT ASSY 22SD BS-1101253MA
...
35
SCREW, 5/16-18X .75SL BS-578088MA
...
...
...
