621301x89A Murray - Single Stage Snow Thrower (2000)

Model: 621301x89A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

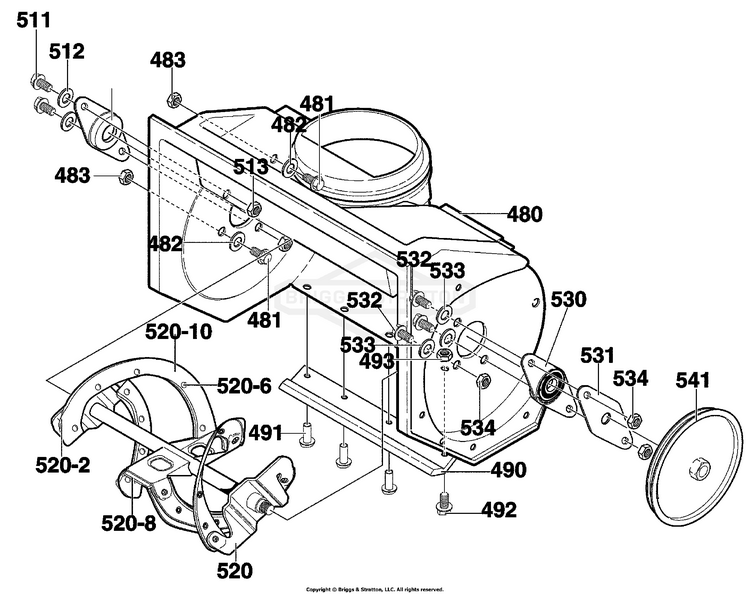

Auger Housing

...
...
480
HOUSING, ASSY BS-333858
...
481
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
482
WASHER BS-703332
...
483
NUT, 1/4-20 BS-73826
...
490
BLADE, SCRAPER BS-55323MA
...
491
Rivet BS-577707MA
...
492
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
493
NUT, 1/4-20 BS-302635
...
510
BRNG, FLNG BS-577023MA
...
511
SCREW, 1/4-20 X 1.00 BS-710263MA
...
512
WASHER BS-703332
...
513
NUT, 1/4-20 BS-302635
...
520
AUGER, ASSY BS-309376
...
520-2
BLADE, AUGER BS-302565MA
...
520-6
RIVET, .250DIAX.5 BS-49838MA
...
520-8
BLADE,CENTER <57121 BS-335992MA
...
520-10
AUGER & BLADE SUPPORT BS-307049-830
...
530
PLATE&BEARING ASY BS-583459MA
...
531
PLATE, RETAINER BS-334287MA
...
532
SCREW.25-20X0.62 HHC BS-579052MA
...
533
WASHER BS-703332
...
534
NUT, 1/4-20 BS-782583
...
541
PULLEY BS-338965MA
