621301x89A Murray - Single Stage Snow Thrower (2000)

Model: 621301x89A

Back To Assemblies

Save Part Not Listed?
product name

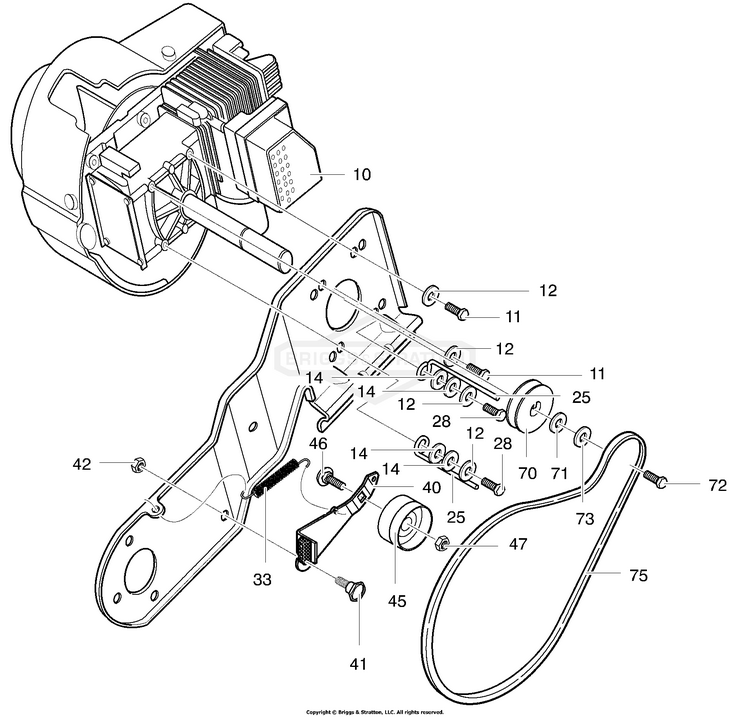

Engine Assembly

...
...
11
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
12
WASHER BS-120638
...
14
WASHER, FLAT BS-120393
...
25
GUIDE, BELT BS-313440MA
...
28
SCREW, 5/16-18 x 1.00 BS-710312
...
33
SPRING, IDLER BRAKE BS-339017MA
...
40
ASSEMBLY, IDLER BRAKE ARM BS-1501013MA
...
41
BOLT-SHD.500X.177 .31 BS-333594MA
...
42
NUT, 5/16-18 BS-1498
...
45
PULLEY, IDLER BS-48924MA
...
46
BOLT, CARRIAGE BS-45892MA
...
47
NUT, 3/8-16 HXCTRLKJA BS-41529MA
...
70
PULLEY, ENGINE BS-338849MA
...
71
WASHER BS-25840
...
72
SCREW, 5/16-24 x .75 BS-181595
...
73
WASHER BS-120638
...
75
BELT, V BS-760928MA
...
--
BOOK, INSTRUCTION BS-F-001167M
