620351x16NB Murray - Single Stage Snow Thrower (2004)

Model: 620351x16NB

Back To Assemblies

Save Part Not Listed?
product name

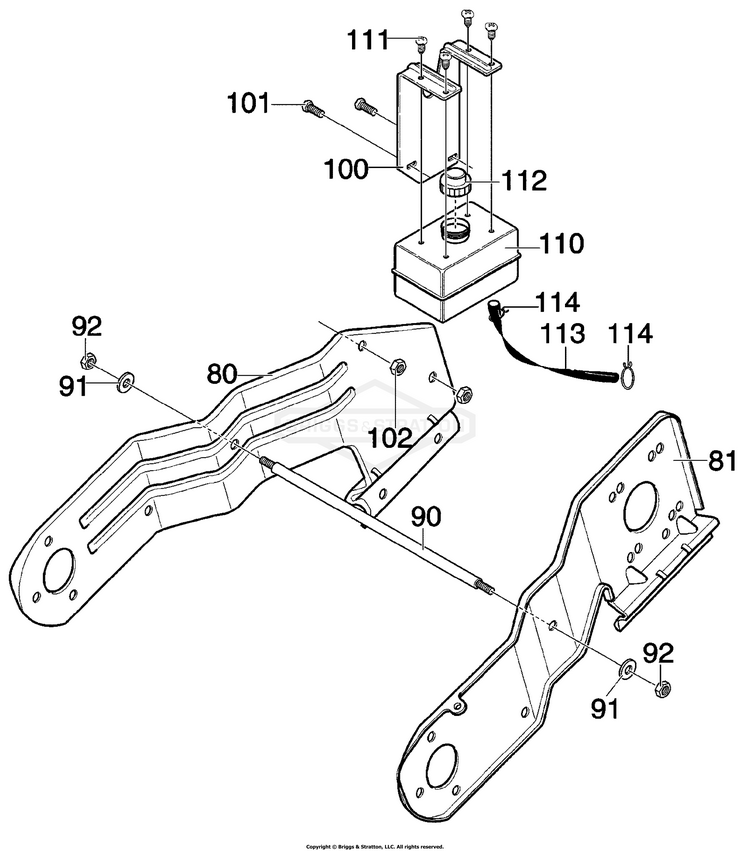

Frame Components Assembly

...
...
80
FRAME SIDE SUPPORT RH BS-MT760272E701
...
81
FRAME SIDE SUPPORT LH BS-MT760271E701
...
90
ROD, SUPPORT BS-MT760169
...
91
WASHER, HVSPTLK BS-MT71063
...
92
NUT, 3/8–16 REGHEX BS-MT71044
...
100
BRACKET, GAS TANK BS-MT578093E701
...
101
SCREW, 1/4–20X.75 BS-MT302628
...
102
NUT, 1/4–20 YZ BS-MT73826
...
110
TANK, FUEL BS-MT55381
...
111
SCREW, 1/4–14X.88 WAHHTAP BS-MT313681
...
112
CAP, GAS–BLACK BS-MT315433
...
113
TUBING 11.50 IN. BS-MT327290
...
114
CLAMP, FUEL LINE BS-MT323387
