620351x16NB Murray - Single Stage Snow Thrower (2004)

Model: 620351x16NB

Back To Assemblies

Save Part Not Listed?
product name

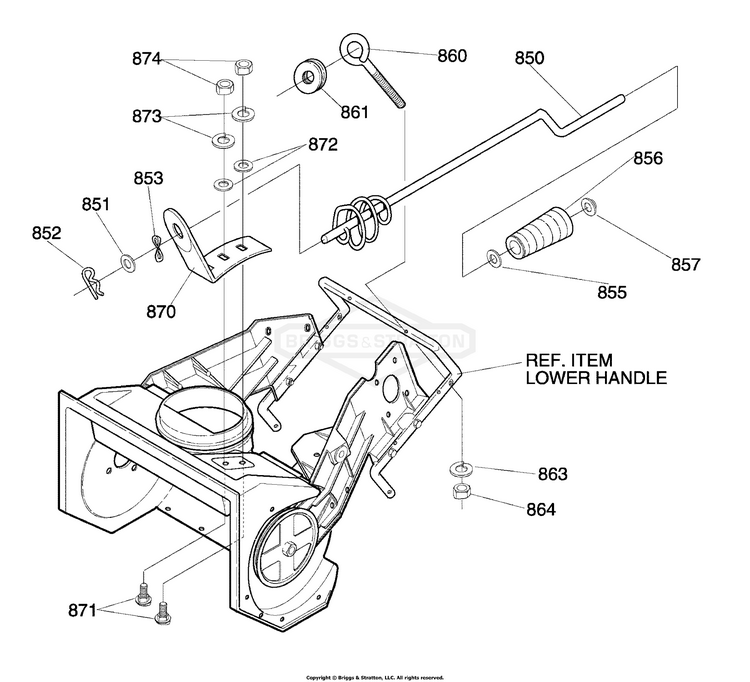

Chute Rod Assembly

...
...
850
ROD, ASSY UPPER CHUTE CONTROL BS-MT314996
...
851
WASHER, FLAT .406X.81X.066 BS-MT71072
...
852
PIN, COTTER BS-MT71082
...
853
WASHER, CURVED SPRING BS-MT313431
...
855
WASHER, FLAT .406X.81X.066 BS-MT71072
...
856
KNOB, SLEEVE BS-MT57082
...
857
NUT, PUSH BS-MT331532
...
860
BOLT, EYE 3/8–16X2.00 BS-MT313712
...
861
GROMMET, EYE BOLT BS-MT148
...
863
WASHER BS-MT71062
...
864
NUT, HEX JAM 3/8–16 BS-MT71045
...
870
BRACKET, CHUTE ROTATE BS-MT333946E701
...
871
BOLT, CARRIAGE 5/16–18X.75 BS-MT340720
...
872
WASHER, FLAT .349X.69X.066 BS-MT71071
...
873
WASHER .328X.60X.09 BS-MT71060
...
874
NUT, HEX 5/16–18 BS-MT71037
