620351x16NB Murray - Single Stage Snow Thrower (2004)

Model: 620351x16NB

Back To Assemblies

Save Part Not Listed?
product name

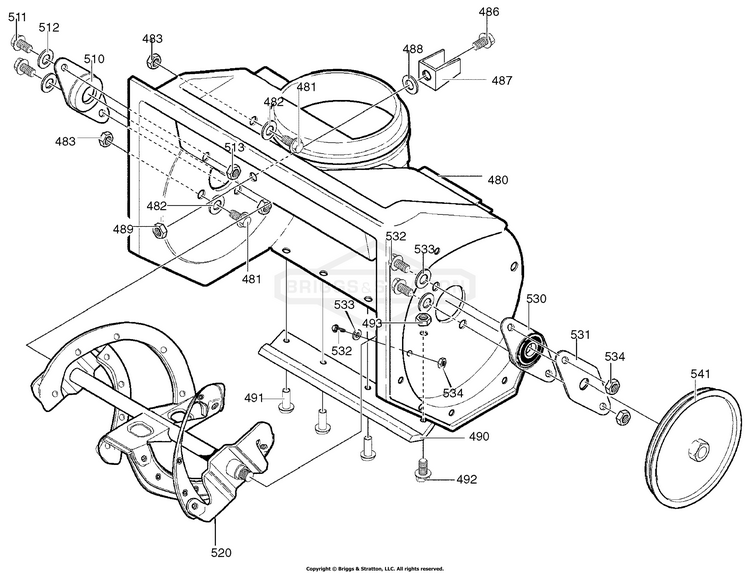

Auger Housing

...
...
480
HOUSING, ASSY BS-MT330312
...
481
SCREW, 1/4–20X.75 BS-MT302628
...
482
WASHER, FLAT .281X.63X.065 BS-MT71067
...
483
NUT, HEX 1/4–20 YZ BS-MT15X143
...
486
SCREW, 1/4–20X.63 BS-MT579052
...
487
BRACKET, STOP BS-MT331126
...
488
WASHER, FLAT .333X.87X.119 BS-MT331211
...
489
NUT, 1/4–20 HEX NYLOCK BS-MT780029
...
490
BLADE, SCRAPER BS-MT334031
...
491
RIVET, OVSET BS-MT577707
...
492
SCREW, 1/4–20X.75 BS-MT302628
...
493
NUT, 1/4–20 YZ BS-MT15X143
...
510
BEARING, FLANGE BS-MT577023
...
511
SCREW, 1/4–20X1.00 BS-MT710263
...
512
WASHER, FLAT .281X.63X.065 BS-MT71067
...
513
NUT, 1/4–20 BS-MT15X143
...
520
AUGER, ASSY BS-MT1501926
...
520–2
BLADE, AUGER BS-302565MA
...
520–6
RIVET, .250DIAX.5 BS-49838MA
...
520–8
BLADE,CENTER <57121 BS-335992MA
...
520–10
AUGER & BLADE SUPPORT BS-302552
...
530
BEARING & PLATE ASSY BS-MT583459
...
531
PLATE, RETAINER BS-MT334287
...
532
SCREW, 1/4–20X.63 BS-MT579052
...
533
WASHER, FLAT .281X.63X.065 BS-MT71067
...
534
NUT, 1/4–20 BS-MT73826
...
541
PULLEY BS-MT338965
