620351x16NB Murray - Single Stage Snow Thrower (2004)

Model: 620351x16NB

Back To Assemblies

Save Part Not Listed?
product name

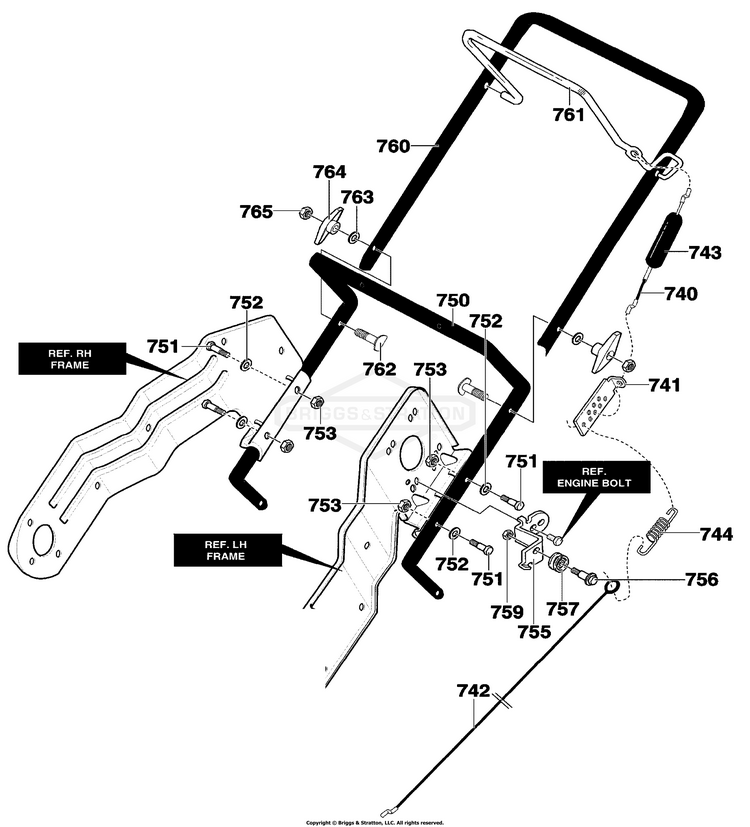

Handle Assembly

...
...
740
CABLE, UPPER BS-MT760774
...
741
BRACKET, CABLE ADJ BS-MT313441
...
742
CABLE, LOWER CONTROL BS-MT760773
...
743
BOOT, CLUTCH SPRING BS-MT308146
...
744
SPRING, EXTENSION BS-MT313471
...
750
HANDLE, LOWER BS-MT313487E701
...
751
SCREW, 1/4–20X1.25 BS-MT313674
...
752
WASHER, FLAT BS-MT71067
...
753
NUT, 1/4–20 BS-MT73826
...
755
BRACKET, CABLE BS-MT761486E701
...
756
BOLT BS-MT712234
...
757
PULLEY BS-MT39298
...
759
NUT, 1/4–20 YZ BS-MT15X143
...
760
UPPER HANDLE BS-MT313489E701
...
761
BAIL, CONTROL BS-MT313308E701
...
762
BOLT BS-MT337584
...
763
WASHER, FORM BS-MT311936
...
764
KNOB, T 3.00 WD BS-MT57171
...
765
NUT, 5/16–18 BS-MT71037
