620351x16NB Murray - Single Stage Snow Thrower (2004)

Model: 620351x16NB

Back To Assemblies

Save Part Not Listed?
product name

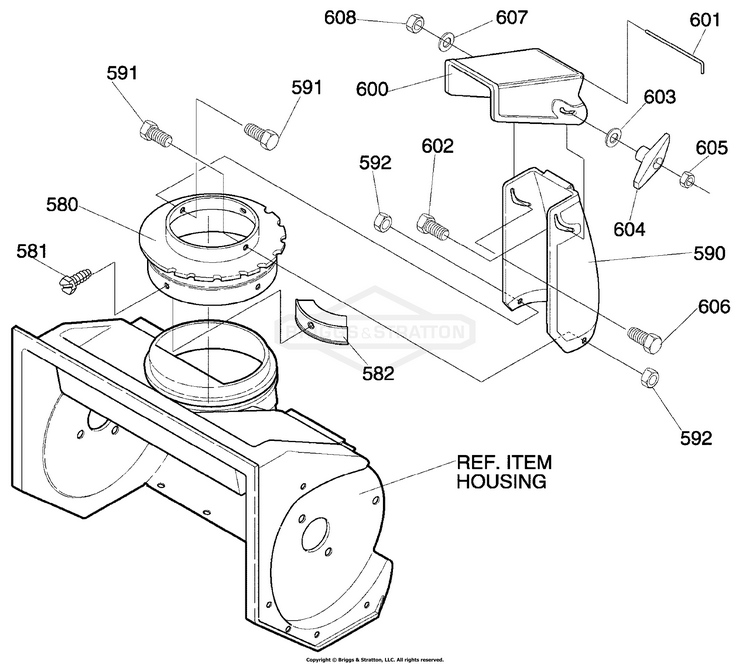

Discharge Chute

...
...
580
RING, CHUTE BS-MT314239
...
581
SCREW, #10X.50 BS-MT711752
...
582
GUIDE, CHUTE BS-MT577021
...
590
CHUTE, LOWER BS-MT334234
...
591
SCREW 1/4–20X.50 BS-MT313686
...
592
NUT, 1/4–2 YZ BS-MT15X143
...
600
CHUTE, UPPER BS-MT325847
...
601
WIRE, HINGE BS-MT308931
...
602
BOLT, CARRIAGE 5/16–18X1.25 BS-MT302843
...
603
WASHER, FLAT .349X.69X.066 BS-MT71071
...
604
KNOB, T BS-MT57171
...
605
NUT, HEX 5/16–18 BS-MT71037
...
606
SCREW, 5/16–18 x 0.75 BS-MT578088
...
607
WASHER, FLAT .349X.69X.066 BS-MT71071
...
608
NUT, HEX 5/16–18 BS-MT71391
