620351x16NB Murray - Single Stage Snow Thrower (2004)

Model: 620351x16NB

Back To Assemblies

Save Part Not Listed?
product name

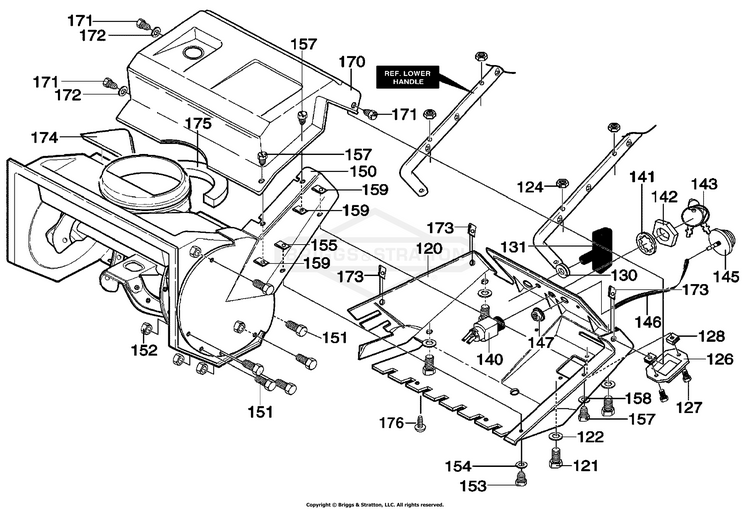

Top Cover Assembly

...
...
120
COVER, BOTTOM BS-MT314521
...
121
SCREW, 1/4–20X1.25 BS-MT313674
...
122
WASHER, FLAT .281X.63X.065 BS-MT71067
...
124
NUT, 1/4–20 YZ BS-MT73826
...
126
COVER, CARB BS-MT326212
...
127
SCREW, 1/4–14X.75 BS-MT313685
...
128
NUT, 1/4–10 SPEED J TYPE BS-MT578109
...
130
GROMMET & WASHER, ROPE GUIDE BS-MT57587
...
131
KNOB, STAND TEE BS-MT333643
...
140
SWITCH, IGNITION BS-MT56992
...
141
WASHER BS-MT313683
...
142
NUT, 5/8–32 ACC BS-MT300193
...
143
2 KEYS & RING BS-MT49643
...
145
PRIMER, ENGINE BS-MT54601
...
146
HOSE, PRIMER BS-MT1259
...
147
KEPS NUT, 1/4–20 BS-MT271172
...
150
COVER, BELT BS-MT57036
...
151
SCREW, 10–24X.50 BS-MT12342
...
152
NUT, #10–24 BS-MT312300
...
153
SCREW, 1/4–20X.50 BS-MT313686
...
154
WASHER, FLAT .281X.63X.065 BS-MT71067
...
155
NUT, 1/4–20 TINN BS-MT578107
...
157
SCREW, 1/4–14X.75 BS-MT313685
...
158
WASHER, FLAT .281X.63X.065 BS-MT71067
...
159
NUT, 1/4–20 SPEED J TYPE BS-MT578109
...
170
COVER, TOP BS-MT1501690
...
171
SCREW, 1/4–14X.75 BS-MT313685
...
172
WASHER, FLAT .281X.63X.065 BS-MT71067
...
173
NUT, 1/4–10 SPEED J TYPE BS-MT578109
...
174
SEAL, FOAM BS-MT55379
...
175
SEAL, STRIP CHUTE & GAS SEAL BS-MT55380
...
176
SCREW 10–14 x 0.63 BS-MT26X292
