620301x85B Murray - Single Stage Snow Thrower (2000)

Model: 620301x85B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

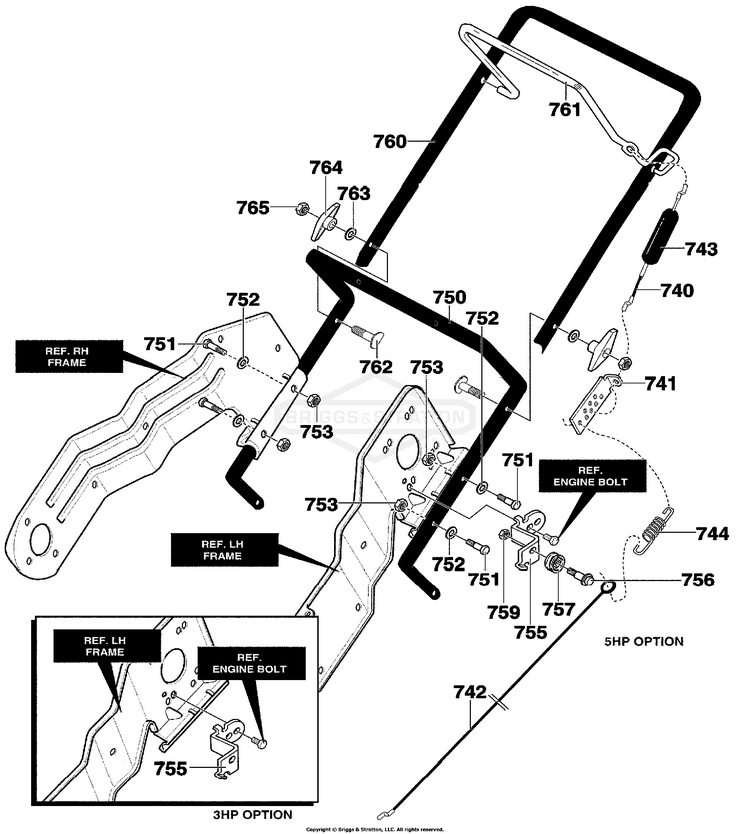

Handle Assembly

...
...
740
CABLE, UPPER BS-760774MA
...
741
BRACKET, CABLE ADJ BL BS-313441MA
...
742
CABLE, LOWER CONTROL BS-760773MA
...
743
BOOT, CLUTCH SPRING BS-308146MA
...
744
SPRING, EXTENSION BS-165X146MA
...
750
HANDLE, LOWER BS-313487-853
...
751
BOLT, 1/4-20 X 1-1/4" BS-5025010X10SM
...
752
WASHER BS-703332
...
753
NUT, 1/4-20 BS-703251
...
755
BRACKET, CABLE BS-761486-853
...
756
BOLT BS-58336
...
757
PULLEY, NYLON BS-39298
...
759
NUT, 1/4-20 BS-703251
...
760
UPPER HANDLE BS-338044
...
761
BAIL, CONTROL BS-313308-853
...
762
BOLT, 5/16-18X2.OO CU BS-337584MA
...
763
WASHER, FORM .344 ID BS-311936MA
...
764
KNOB, WING 3.00 BS-1501260MA
...
765
HN, 5/16C GR5 YZ BS-7091511SM
