620301x85B Murray - Single Stage Snow Thrower (2000)

Model: 620301x85B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

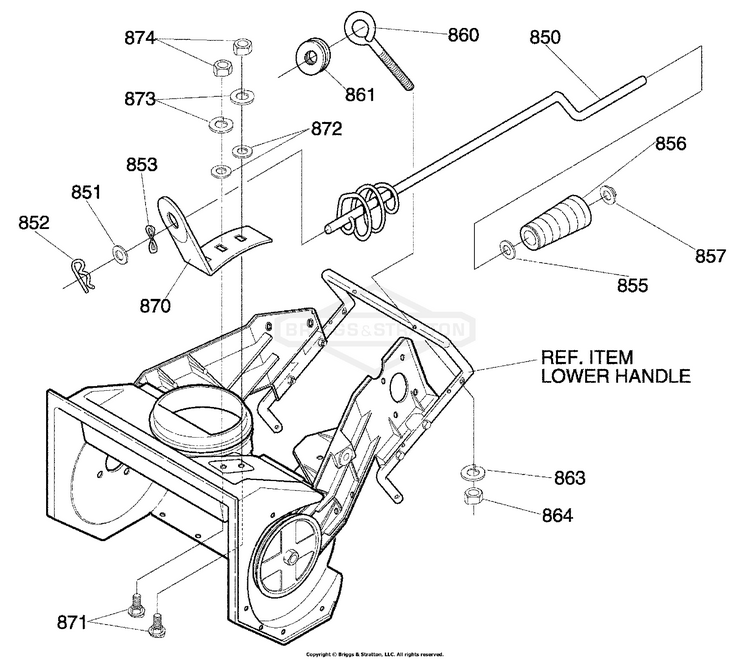

Chute Rod Assembly

...
...
850
ROD, ASSY UPPER CHUTE CONTROL BS-314996
...
851
WASHER, FLAT BS-71072
...
852
PIN, COTTER BS-71082
...
853
WASHER, CURVED SPRING BS-313431MA
...
855
WASHER, FLAT BS-71072
...
856
KNOB, SLEEVE BS-57082MA
...
857
NUT, PUSH, FITS 3/8 D BS-331532MA
...
860
EYE BOLT, 3/8-16X2.00 BS-313712
...
861
GROMMET, Eyelet BS-148MA
...
863
WASHER, MDSPTLK BS-71062
...
864
NUT, 3/8-16 HEXJAM BS-71045
...
870
BRACKET, CHUTE ROTATE BS-333946-853
...
871
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
872
WASHER BS-703350
...
873
WASHER BS-071060
...
874
HN, 5/16C GR5 YZ BS-7091511SM
