620301x85B Murray - Single Stage Snow Thrower (2000)

Model: 620301x85B

Back To Assemblies

Save Part Not Listed?
product name

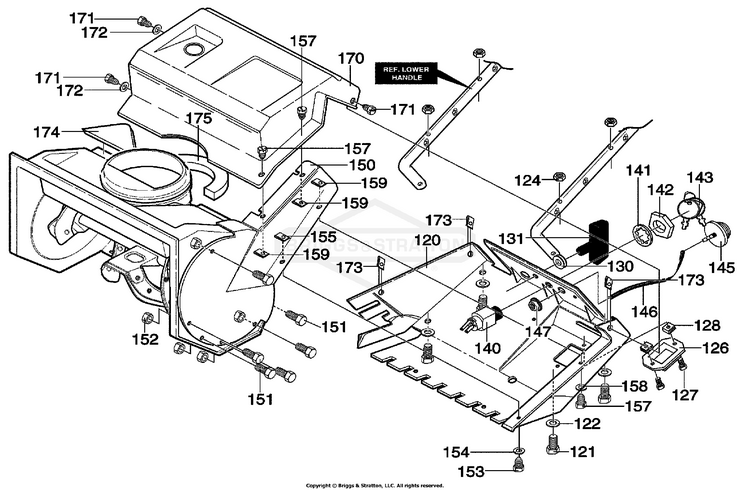

Top Cover Assembly

...
...
120
COVER, BOTTOM BS-302265MA
...
121
BOLT, 1/4-20 X 1-1/4" BS-5025010X10SM
...
122
WASHER BS-703332
...
124
NUT, 1/4-20 BS-703251
...
126
COVER, CARB BS-326212
...
127
SCREW, 1/4-14X .75 SL BS-313685MA
...
128
NUT, 1/4-10 SPEED J TYPE BS-578109MA
...
130
GROMMET & WASHER BS-57587MA
...
131
KNOB, STAND TEE BS-333643
...
140
SWITCH, IGNITION BS-56992MA
...
141
WASHER, INTERNAL LOCK BS-313683MA
...
142
NUT, 5/8-32 ACC BS-300193MA
...
143
SET, Key BS-691959
...
145
PRIMER, Carburetor BS-695750
...
146
HOSE, PRIMER BS-1259MA
...
147
NUT, 1/4-20 BS-271172
...
150
COVER,BELT,20 2CY 653 BS-57036MA
...
151
SCREW, 10-24X.50 BS-12342MA
...
152
NUT#10-24 MCLEANLOCK BS-015X81MA
...
153
SCREW.25-20X0.62 HHC BS-579052MA
...
154
WASHER BS-703332
...
155
NUT, 1/4-20 BS-578107
...
157
SCREW, 1/4-14X .75 SL BS-313685MA
...
158
WASHER BS-703332
...
159
NUT, 1/4-20 BS-578109MA
...
170
COVER, TOP BS-337103
...
171
SCREW, 1/4-14X .75 SL BS-313685MA
...
172
WASHER BS-703332
...
173
NUT, 1/4-10 BS-578109MA
...
174
SEAL, STRIP BS-055379
...
175
SEAL, STRIP CHUTE & GAS SEAL BS-055380
