620301x85B Murray - Single Stage Snow Thrower (2000)

Model: 620301x85B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

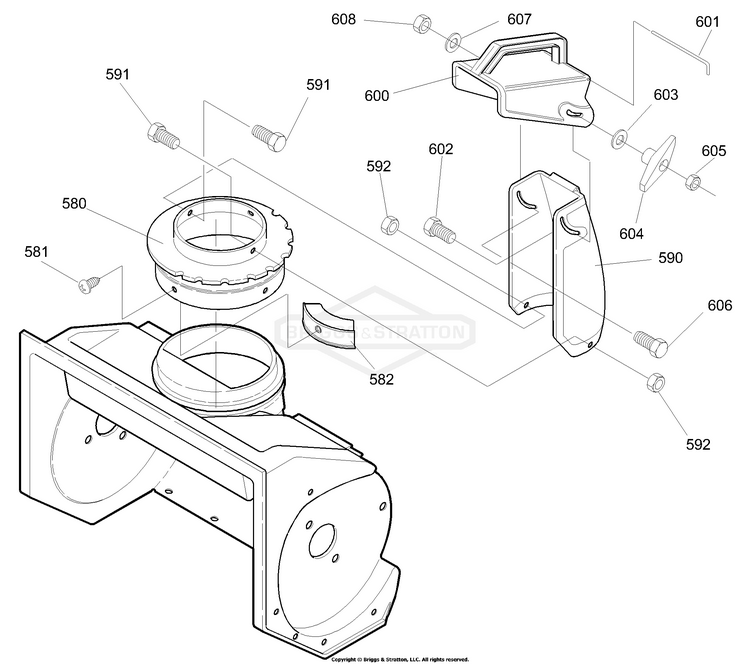

Discharge Chute

...
...
580
RING, CHUTE BS-314239MA
...
581
SCREW BS-711752MA
...
582
GUIDE, CHUTE BS-577021MA
...
590
CHUTE, LOWER BS-337104
...
591
SCREW, 1/4-20X .50 HH BS-313686MA
...
592
NUT, 1/4-2 BS-302635
...
600
CHUTE, UPPER BS-314704MA
...
601
WIRE, HINGE BS-310562MA
...
602
BOLT, 5/16-18X1.25 CA BS-302843MA
...
603
WASHER BS-703350
...
604
KNOB, WING 3.00 BS-1501260MA
...
605
HN, 5/16C GR5 YZ BS-7091511SM
...
606
SCREW, 5/16-18X .75SL BS-578088MA
...
607
WASHER BS-703350
...
608
IDLER SUPT ASSY 22SD BS-1101253MA
