620301x61NA Murray - Single Stage Snow Thrower (2002)

Model: 620301x61NA

Back To Assemblies

Save Part Not Listed?
product name

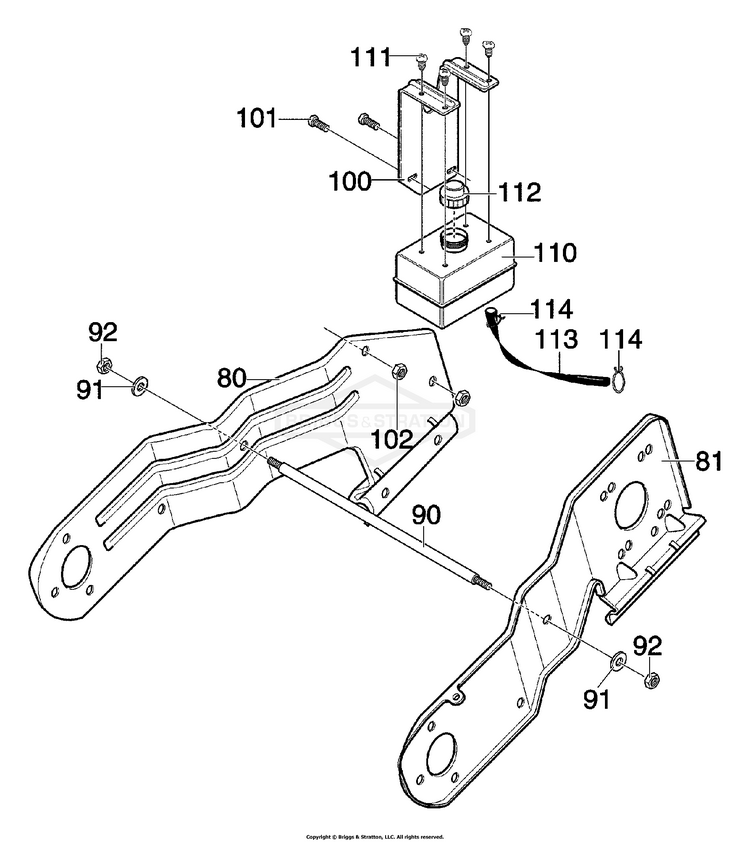

Frame Components Assembly

...
...
80
FRAME SIDE SUPPORT RH BS-760272E701
...
81
FRAME SIDE SUPPORT LH BS-760271E701MA
...
90
ROD, SUPPORT BS-760169
...
91
WASHER, HVSPTLK BS-71063
...
92
NUT, 3/8-16 REGHEX BS-71044
...
100
BRACKET, GAS TANK BS-578093E701
...
101
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
102
NUT,25-20 HEX FLG CTR BS-15X143MA
...
110
TANK, FUEL BS-055381
...
111
SCREW, 1/4-14X.88 WAHHTAP BS-313681
...
112
CAP, GAS-BLACK BS-315433MA
...
113
TUBING 11.50 IN. BS-327290
...
114
CLAMP, FUEL LINE BS-323387MA
