620301x54D Murray - Single Stage Snow Thrower (2001)

Model: 620301x54D

Back To Assemblies

Save Part Not Listed?
product name

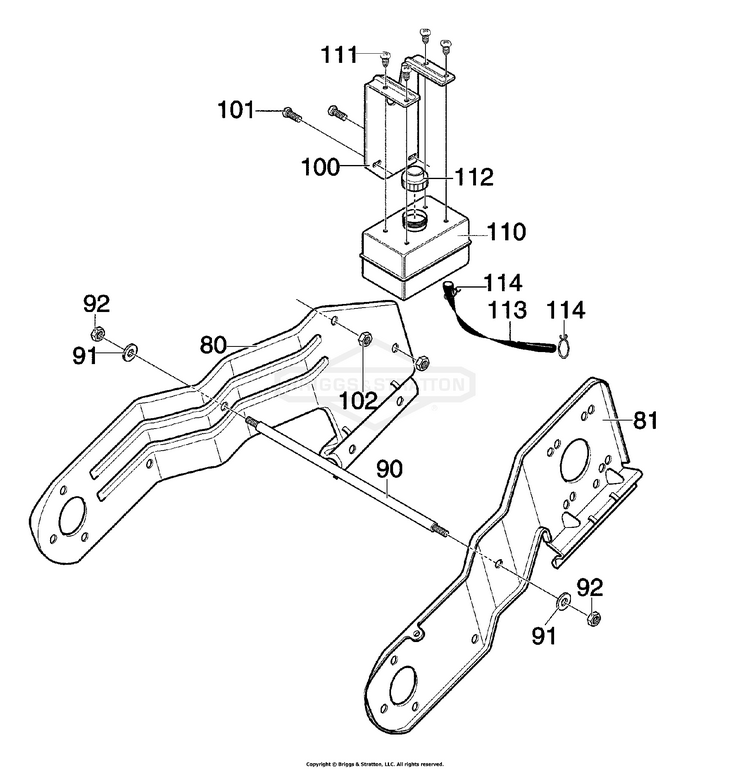

Frame Components Assembly

...
...
80
FRAME SIDE SUPPORT RH BS-760272-853
...
81
FRAME SIDE SUPPORT LH BS-760271-853
...
90
ROD, SUPPORT BS-760169
...
91
WASHER BS-71063
...
92
NUT, 3/8-16 BS-71044
...
100
BRACKET, GAS TANK BS-578093-583
...
101
SCREW, 1/4-20X.75 BS-180020
...
102
NUT, 1/4-20 BS-703251
...
110
TANK, FUEL BS-055381
...
111
SCREW BS-313681
...
112
CAP, GAS-RED BS-315433MA
...
113
TUBING 11.50 IN. BS-327290
...
114
CLAMP, FUEL LINE BS-48672
