620301x54C Murray - Single Stage Snow Thrower (2000)

Model: 620301x54C

Back To Assemblies

Save Part Not Listed?
product name

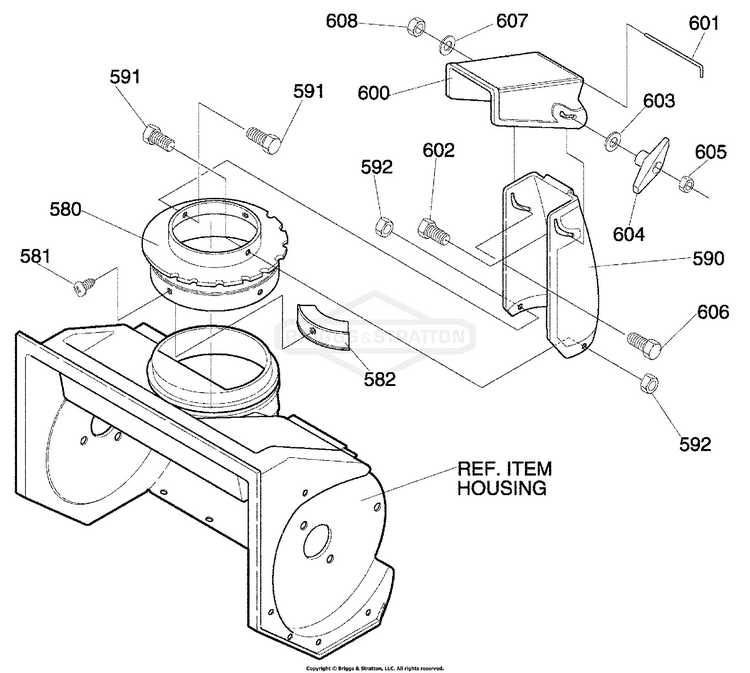

Discharge Chute

...
...
580
RING, CHUTE BS-314239MA
...
581
SCREW, #10X.50 BS-711752MA
...
582
GUIDE, CHUTE BS-577021MA
...
590
CHUTE,LWR C1 BLACK BS-334234MA
...
591
SCREW, 1/4-20X .50 HH BS-313686MA
...
592
NUT, 1/4-2 BS-302635
...
600
CHUTE,UPR C1 BLACK BS-325847MA
...
601
WIRE, HINGE BS-308931MA
...
602
BOLT, 5/16-18X1.25 CA BS-302843MA
...
603
WASHER, FLAT BS-120393
...
604
KNOB, T BS-13527
...
605
HN, 5/16C GR5 YZ BS-7091511SM
...
606
SCREW, 5/16-18X .75SL BS-578088MA
...
607
WASHER, FLAT BS-120393
...
608
NUT, 5/16-18 BS-1498
