61E877-0005-J1 Briggs and Stratton Engine

Model: 61E877-0005-J1

Back To Assemblies

Save Part Not Listed?
product name

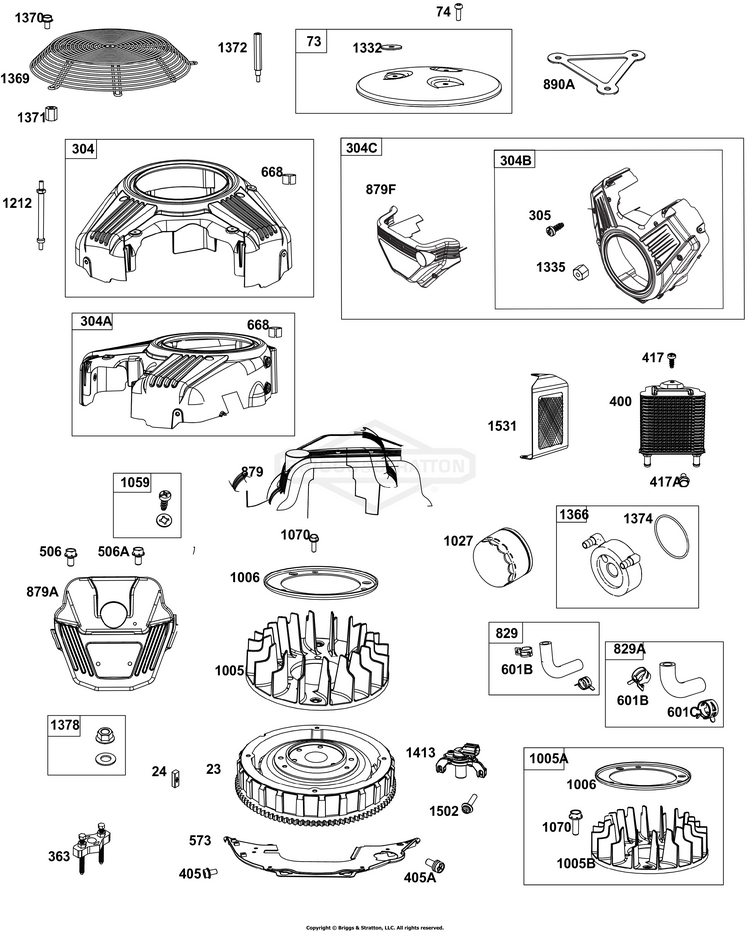

Blower Housings, Flywheel, Oil Cooler

...
...
23
FLYWHEEL BS-846836
...
24
KEY, Flywheel (Steel) BS-796335
...
73
SCREEN, Rotating BS-841840
...
74
SCREW (Rotating Screen) BS-809947
...
304A
HOUSING, Blower Used Before Code Date 23122100 (No Longer Available) (See Reference 304C for Service) BS-847386
...
304B
HOUSING, Blower Used After Code Date 23122000 BS-84011459
...
304C
KIT, Blower Housing BS-84013455
...
305
SCREW (Blower Housing) BS-807435
...
363
PULLER, Flywheel BS-19203
...
400
COOLER, Oil BS-846249
...
405
SCREW (Back Plate) (M6x10mm) BS-841233
...
405A
SCREW (Back Plate) (M6x14mm) BS-841735
...
417
SCREW (Oil Cooler) (Top) (M6x16mm) BS-84006665
...
417A
SCREW (Oil Cooler) (Bottom) (M6x10mm) BS-841233
...
506
SCREW (Carburetor/EFI Cover) (M8x14mm) BS-692056
...
506A
SCREW (Carburetor/EFI Cover) (M8x10mm) BS-845964
...
573
PLATE, Back BS-846840
...
601B
CLAMP, Hose (Oil Cooler Hose) BS-841597
...
601C
CLAMP, Hose (Oil Cooler Hose) BS-845209
...
668
SPACER (Blower Housing) BS-841974
...
829
HOSE, Oil Cooler BS-846155
...
829A
HOSE, Oil Cooler BS-846155
...
879
COVER, Carburetor/EFI Used Before Code Date 23122100 (No Longer Available) (See Reference 304C for Service) BS-846883
...
879A
COVER, Carburetor/EFI (Front) BS-847468
...
879F
COVER, Carburetor/EFI Used After Code Date 23122000 BS-84011178
...
890A
BRACKET, Support (Rotating Screen) BS-809987
...
1005
FAN, Flywheel Used After Code Date 15080600 BS-84006946
...
1005A
FAN, Flywheel Used Before Code Date 15080700 BS-847199
...
1005B
FAN, Flywheel Used Before Code Date 15080700 BS-846995
...
1006
RETAINER, Fan BS-847198
...
1059
KIT, SCREW/WASHER (Carburetor/EFI Cover) BS-84008343
...
1070
SCREW (Flywheel Fan) (M6x20mm) BS-807435
...
1212
STUD (Blower Housing) BS-809958
...
1332
WASHER (Rotating Screen) BS-809948
...
1335
NUT (Blower Housing) BS-841537
...
1366
DIVERTER, Oil Cooler BS-841510
...
1369
GUARD, Flywheel Fan BS-842858
...
1370
SCREW (Flywheel Fan Guard) (M6x10mm) BS-841233
...
1371
NUT (Flywheel Fan Guard) BS-841537
...
1372
FAN, Flywheel (Rotating Screen) BS-84006946
...
1374
SEAL, O-Ring (Oil Cooler Diverter) BS-796863
...
1378
SET, Washer/Nut (Flywheel) BS-844795
...
1413
SENSOR, Speed BS-84006668
...
1502
SCREW (Speed Sensor) (M4x18mm) BS-846868
...
1531
GUARD, Debris Screen BS-847397
