61E477-0001-J1 Briggs and Stratton Engine

Model: 61E477-0001-J1

Back To Assemblies

Save Part Not Listed?
product name

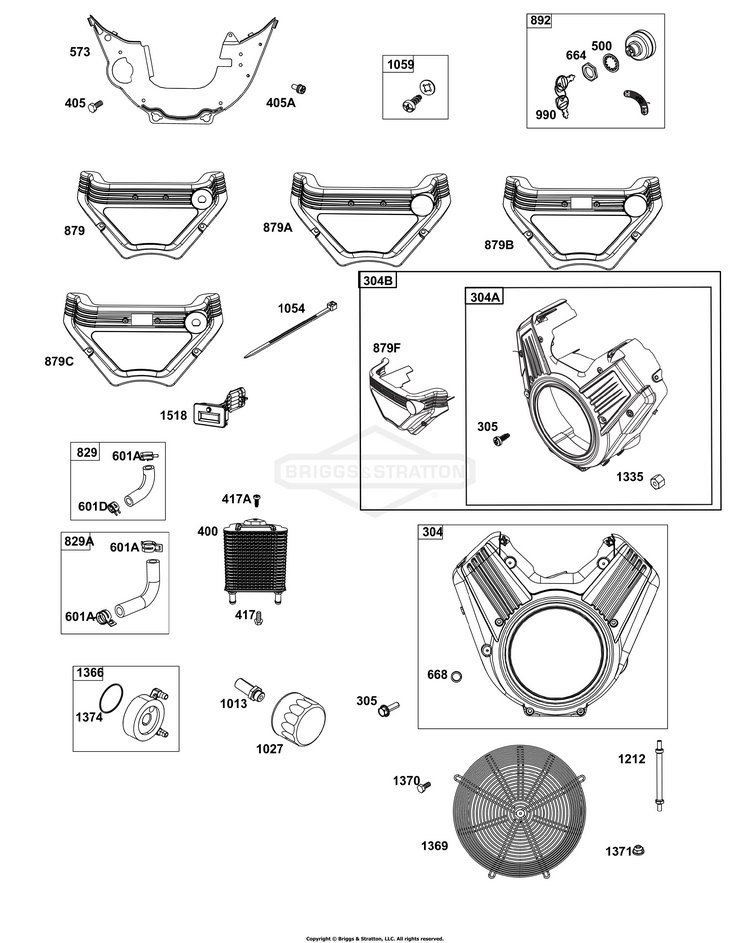

Blower Housing, Carburetor Covers, Oil Cooler

...
...
304
HOUSING, Blower Used Before Code Date 23122100 (No Longer Available) (See Reference 304B for Service) BS-846481
...
304A
HOUSING, Blower (Used After Code Date 23122000) BS-84011458
...
304B
KIT, Blower Housing BS-84013453
...
305
SCREW (Blower Housing) (M6x20mm) BS-807435
...
400
COOLER, Oil BS-846249
...
405
SCREW (Back Plate) (M6x10mm) BS-841233
...
405A
SCREW (Back Plate) (M6x14mm) BS-841735
...
417
SCREW (Oil Cooler) (M6x10mm) BS-841233
...
417A
SCREW (Oil Cooler) (M6x16mm) BS-84006665
...
500
WASHER (Key Switch) BS-691086
...
573
PLATE, Back BS-846840
...
601A
CLAMP, Hose (Oil Cooler Hose) BS-841597
...
601D
CLAMP, Hose (Oil Cooler Hose) BS-845209
...
664
NUT (Key Switch) BS-691087
...
668
SPACER (Blower Housing) BS-841974
...
829
HOSE, Oil Cooler BS-846155
...
829A
HOSE, Oil Cooler BS-846155
...
879
COVER, Carburetor/EFI Used Before Code Date 23122100 (No Longer Available) (See Reference 304B for Service) BS-846504
...
879F
COVER, Carburetor/EFI (Used After Code Date 23122000) BS-84011177
...
892
SWITCH, Key (Includes Key Switch Label) BS-692318
...
990
SET, Key BS-691959
...
1013
NIPPLE, Oil Filter BS-841602
...
1027
FILTER, Oil BS-842921
...
1054
TIE, Cable (Clear, Nylon) BS-280275
...
1059
KIT, SCREW/WASHER (Carburetor/EFI Cover) BS-84008343
...
1212
STUD (Blower Housing) BS-809958
...
1335
NUT (Blower Housing) BS-841537
...
1366
DIVERTER, Oil Cooler BS-841510
...
1369
GUARD, Flywheel Fan BS-842858
...
1370
SCREW (Flywheel Fan Guard) BS-841233
...
1371
NUT (Flywheel Fan Guard) BS-841537
...
1374
SEAL, O-Ring (Oil Cooler Diverter) BS-796863
...
1335
NUT (Blower Housing) BS-841537
