61E377-0017-J1 Briggs and Stratton Engine

Model: 61E377-0017-J1

Back To Assemblies

Save Part Not Listed?
product name

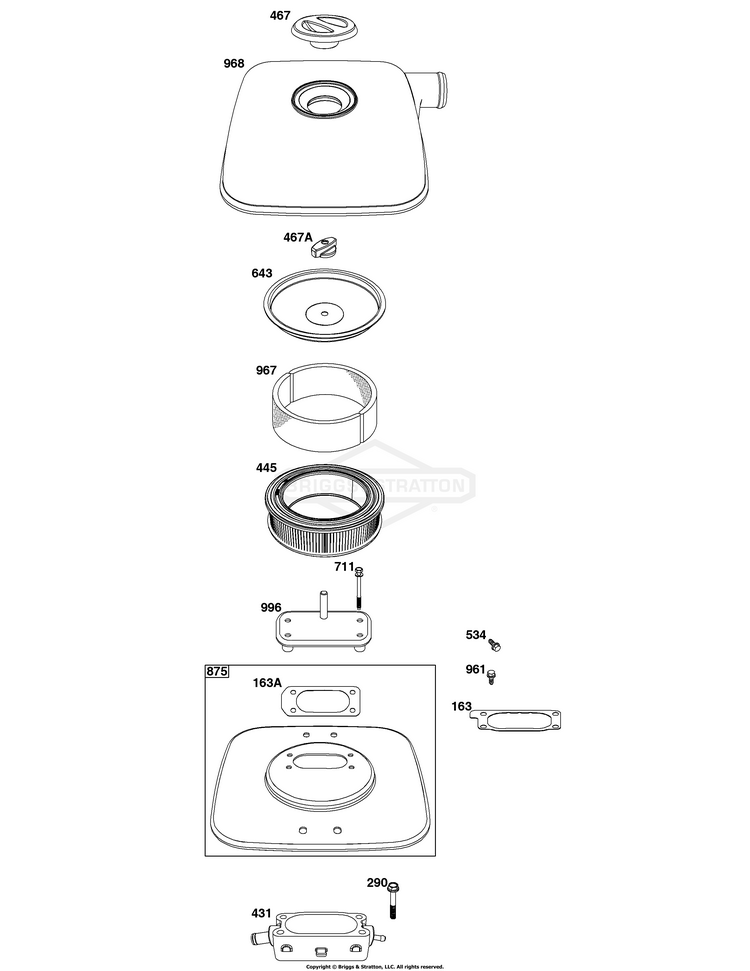

Air Cleaner Group

...
...
290
SCREW (Intake Elbow) (M6x40mm) BS-807357
...
431
ELBOW, Intake BS-846507
...
445
FILTER, A/C Cartridge BS-692519
...
467
KNOB, Air Cleaner Cover BS-846008
...
467A
KNOB, Air Cleaner Cover BS-846432
...
534
SCREW (Air Cleaner) (M8x18mm) BS-692062
...
643
RETAINER, Air Cleaner BS-844932
...
711
SCREW (Carburetor Shield) (M6x68mm) BS-806444
...
875
BASE, Air Cleaner BS-843118
...
961
SCREW (Air Cleaner Bracket) (M8x14mm) BS-692056
...
967
FILTER, Pre Cleaner BS-692520
...
968
COVER, Air Cleaner BS-841847
...
996
SHIELD, Carburetor BS-846006
