615000x31A Murray - Single Stage Snow Thrower (2000)

Model: 615000x31A

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

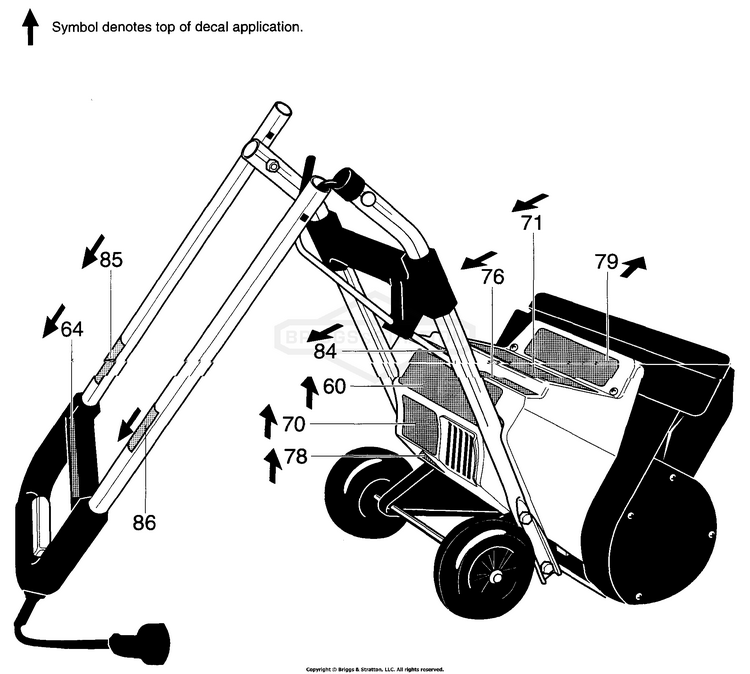

Decals

...
...
60
DECAL, FOR SAFE OPERATION ENG/FR BS-761108
...
64
DECAL TO START & STOP BS-905112
...
71
DECAL, NAMEPLATE BS-48X272
...
76
DECAL, DISCHARGE CONTROL BS-905111
...
79
DECAL, DANGER FOOT BS-761068
...
84
DECAL, WARNING CUT-OUT BS-783027MA
...
85
DECAL, MOTOR PROTECTION, ENG BS-762049
...
86
DECAL, MOTOR PROTECTION, FR BS-762050

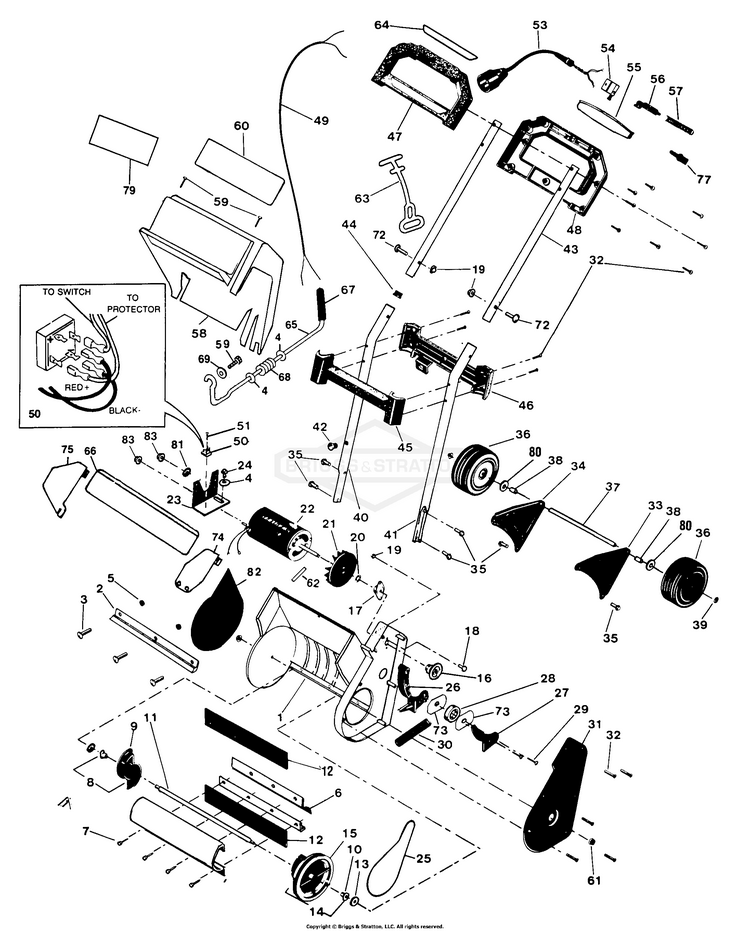

Illustrated Parts List

...
...
1
HOUSING-SCOOP BS-583599MA
...
2
BLADE, SCRAPER BS-905040MA
...
3
BOLT, 1/4-20X .63 CARR BS-3809
...
4
WASHER, FLAT .28X .63X.065 BS-71067MA
...
5
NUT, 1/4-20, GR5 BS-703233
...
6
SEGMENT-DRUM BS-780169
...
7
SCREW 10-24-3/4 BS-780212
...
9
CAP-DRUM END BS-780605
...
10
BEARING-BRONZE BS-904970MA
...
11
SHAFT-PADDLE BS-780211
...
12
PADDLE-AUGER BS-780238MA
...
13
WASHER, FLAT .328X .75 BS-996407
...
15
PULLEY-DRIVEN BS-780336
...
16
PULLEY-DRIVE BS-583688
...
17
BEARING, SELF ALIGN BS-904975
...
18
SCREW, 1/4-20X .50 HH BS-313686MA
...
19
NUT, HEX, KEPS,1/4-20 BS-703914
...
20
RING, RET E .30X.04TR BS-577598MA
...
21
FAN,MOTOR BS-760256MA
...
22
MOTOR,120V BS-586949
...
23
BRKT, MOTOR MT. BS-904988
...
24
SCREW, 1/4-14X .75 BS-904985
...
25
BELT-DRIVE BS-780239MA
...
26
ARM-IDLER BS-904993
...
27
RETAINER IDLER BRNG BS-904998
...
28
BEARING - BALL BS-904997
...
29
SCREW, #8 X.63 POLY BS-905140
...
30
SPRING IDLER BS-904999
...
31
COVER-DRIVE HSNG LH BS-780240-853
...
32
SCREW, #8 X 3/4 POLY BS-1694MA
...
33
BRKT, WHEEL LH BS-904976E853
...
34
BRKT, WHEEL RH BS-904977E853
...
35
SCREW, 1/4-20X0.625 BS-703054
...
36
WHEEL, 15" SNOW SHOVEL BS-585556
...
37
AXLE WHEEL BS-904980
...
38
SPACE R-WHL,.328IDX.06X9/16L BS-585564
...
39
NUT, PUSH ON CAP .312 BS-3535MA
...
40
HANDLE, LOWER RH BS-578914-853
...
41
HANDLE, LOWER LH BS-578918-853
...
42
BUSHING BS-905017
...
43
HANDLE, UPPER BS-578906-853
...
44
PROTECTOR, HARNESS BS-579527
...
45
HARNESS, PROTECTOR BS-903142
...
46
SET,HANDLE.ASSIST BS-577120
...
47
SET,HANDLE.GRIP BS-578981
...
49
WIRE HARNESS BS-905018MA
...
50
RECTIFIER, FULL WAVE BS-780062MA
...
51
SCREW, #6 X .50 BS-761327
...
53
CONNECTIN LEAD BS-905030MA
...
54
SWITCH, TRM 2516LOV BS-780266
...
55
BAR-SWITCH BS-905027
...
56
LEVER-SWITCH BS-905028
...
57
SPRING - SWITCH BS-905029
...
58
COVER-MOTOR BS-905047
...
59
SCREW, 10-16X .63 BS-905032
...
61
NUT, 5/16-18 WDFLLK BS-711634MA
...
62
PIN, GROOVED.125 DIAX.63LG BS-12569MA
...
63
STRAIN RELIEF, CORD BS-10542MA
...
65
ROD-DISCHARGE BS-905009
...
66
SLIDER-VANE BS-905006
...
67
GRIP, HAND VINYL BS-905045
...
68
SPRING,ACTUATOR ROD NEW-15 BS-583687
...
69
WASHER, FLAT .750X .22X.070 BS-900373
...
72
BOLT, 1/4-20X1.25 BS-905408
...
73
RETAINER-BELT BS-904996
...
74
OUTER DEFLECTOR BS-905007
...
75
INNER DEFLECTOR BS-780068MA
...
77
KEY, HI-PRO BS-780069MA
...
80
WASHER BS-703350
...
81
GROMMETT.5 X .81 #GRO 1/2UL BS-780325
...
82
COVER-HSNG RH BS-780206-853
...
83
NUT, #10-32 HNYLLK BS-071056MA
...
...
...
