615000x30NB Murray - Single Stage Snow Thrower (2003)

Model: 615000x30NB

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

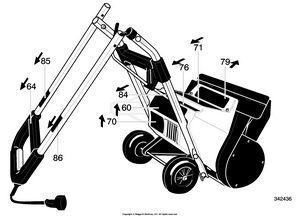

Decals

...
...
60
Decal, Safe Operation BS-761108
...
64
Decal, Start & Stop BS-905112
...
71
Decal, MURRAY TURBO BS-48X372
...
76
Decal, Discharge Control BS-905111
...
79
Decal, Danger Foot BS-761068
...
84
Decal, Warning Cut-Out BS-783027MA
...
85
Decal, Motor Protection, English BS-762049
...
86
Decal, Motor Protection, French BS-762050

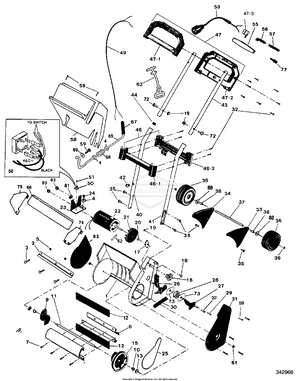

General Assembly

...
...
1
Housing, Scoop BS-583599MA
...
2
Blade, Scraper BS-905040MA
...
3
Bolt BS-3809
...
4
Flat washer BS-71067MA
...
5
Nut, 1/4-20 BS-73826
...
6
Segment, Drum BS-780169
...
7
Screw BS-780212
...
9
Cap, Drum End BS-780605
...
10
Bearing, Bronze BS-904970MA
...
11
Shaft, Paddle BS-780211
...
12
Paddle, Auger BS-780238MA
...
13
Washer, Flat BS-996407
...
15
Pulley, Driven BS-780336
...
16
Pulley, Drive BS-583688
...
17
Bearing, Self Align BS-904975
...
18
SCREW, 1/4-20X .50 HH BS-313686MA
...
19
NUT, HEX, KEPS,1/4-20 BS-703914
...
20
RING, RET E .30X.04TR BS-577598MA
...
21
Fan, Motor BS-760256MA
...
22
Motor, 120V BS-1501639
...
--
AMP Terminal .250 2-250 BS-3291
...
--
AMP Terminal .250 Male 42 BS-50802
...
--
Insulator BS-50803MA
...
23
Bracket, Motor Mount BS-904988
...
24
Screw, 1/4-14x0.75 BS-904985
...
25
Belt, Drive BS-37X134
...
26
Arm, Idler BS-904993
...
27
Bearing, Retainer Idler BS-904998
...
28
Bearing, Ball BS-904997
...
29
Screw BS-26X303MA
...
30
Spring Idler BS-904999
...
31
Cover, Left Drive Housing BS-780240E701MA
...
32
Screw BS-1694MA
...
33
Bracket, Left Wheel BS-904976E701
...
34
Bracket, Right Wheel BS-904977E701MA
...
35
SCREW, 1/4-20X0.625 BS-703054
...
36
Wheel, 15" BS-585556
...
37
Axle BS-904980
...
38
Spacer, Wheel BS-585564
...
39
NUT, PUSH ON CAP .312 BS-3535MA
...
40
Handle, Right Lower BS-578914E701
...
41
Handle, Left Lower BS-578918E701
...
42
Bushing BS-905017
...
43
Handle, Upper BS-578906E701MA
...
44
Protector, Harness BS-579527
...
45
Harness, Protector BS-903142
...
46
Set, Handle Assist BS-577120
...
47
Set, Handle Grip BS-1501759
...
49
Harness, Wire BS-905018MA
...
50
Rectifier, Full Wave BS-780062MA
...
51
Screw BS-761327
...
53
Connecting Lead BS-905030MA
...
55
Bar, Switch BS-905027
...
56
Lever, Switch BS-905028
...
57
Spring, Switch BS-905029
...
58
Cover, Motor BS-905047
...
59
Screw BS-905032
...
61
Nut BS-711634MA
...
62
Pin, Grooved BS-12569MA
...
63
Strain Relief, Cord BS-10542MA
...
65
Rod, Discharge BS-905009
...
66
Slider, Vane BS-905006
...
67
Grip, Hand Vinyl BS-905045
...
68
Spring, Actuator Rod BS-583687
...
69
Washer, Flat BS-900373
...
72
Bolt BS-905408
...
73
Retainer, Belt BS-904996
...
74
Deflector, Outer BS-905007
...
75
Deflector, Inner BS-780068MA
...
77
Key, Hi-Pro BS-780069MA
...
80
WASHER BS-703350
...
81
Grommet BS-780325
...
82
Cover, Right Housing BS-780206E701
...
83
Nut BS-71056
...
--
Wrench BS-906520
...
--
Book, Instruction BS-F-031040C
...
...
...
