614275-0111-G1 Briggs and Stratton Engine

Model: 614275-0111-G1

Back To Assemblies

Save Part Not Listed?
product name

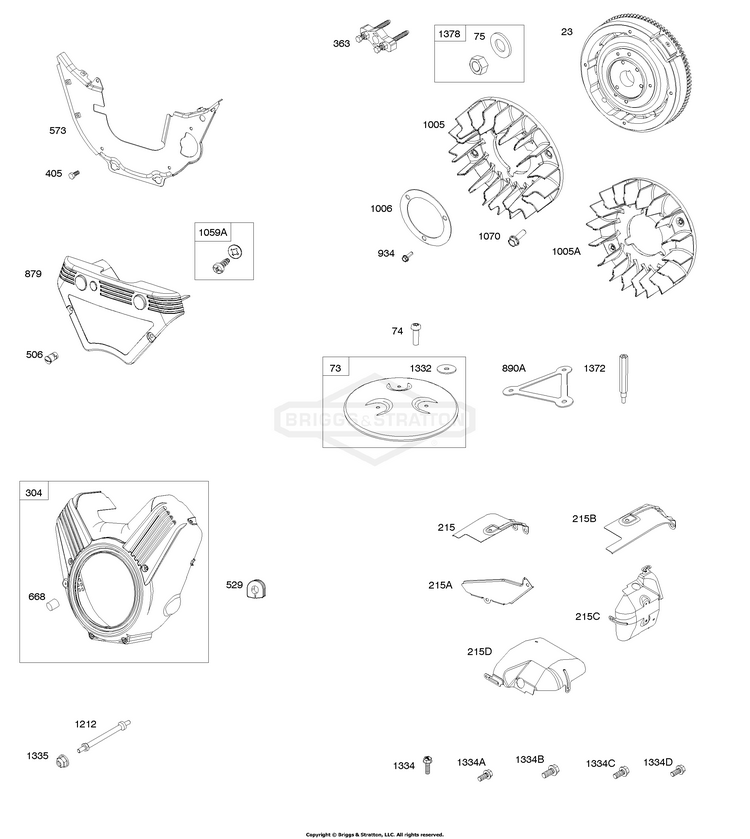

Flywheel, Air Guides, Blower Housing

...
...
23
FLYWHEEL BS-843330
...
75
SET, Washer/Nut (Flywheel) BS-844795
...
215
GUIDE, Air (Cylinder 1) BS-809728
...
215A
GUIDE, Air BS-809739
...
215B
GUIDE, Air (Cylinder 2) BS-809737
...
215C
SHIELD, Cylinder (Cylinder #1) BS-84013676
...
215D
SHIELD, Cylinder (Cylinder #2) BS-84013677
...
304
HOUSING, Blower (Oil Cooler) BS-845894
...
363
PULLER, Flywheel BS-19203
...
405
SCREW (Back Plate) BS-841233
...
529
GROMMET BS-690744
...
573
PLATE, Back BS-842712
...
668
SPACER (Blower Housing) BS-841974
...
879
COVER, Carburetor/EFI BS-809955
...
934
SCREW (Fan Retainer) BS-841205
...
1005
FAN, Flywheel BS-847199
...
1006
RETAINER, Fan BS-847198
...
1059A
KIT, SCREW/WASHER (Carburetor Cover) BS-84008343
...
1070
SCREW (Flywheel Fan) (M6x20mm) BS-807435
...
1212
STUD (Blower Housing) BS-809958
...
1334
SCREW (Air Guide) (M4x12mm) BS-690677
...
1334A
SCREW (Air Guide) (M6x20mm) BS-807435
...
1334C
SCREW (Air Guide) (M6x10mm) BS-841233
...
1334D
SCREW (Air Guide) (M6x18mm) BS-692062
...
1334B
SCREW (Air Guide) (M6x14mm) BS-807084
...
1335
NUT (Blower Housing) BS-690939
...
1378
SET, Washer/Nut (Crankshaft) BS-844795
