614275-0111-G1 Briggs and Stratton Engine

Model: 614275-0111-G1

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Cylinders, Oil Cooler, Manuals

...
...
1
CYLINDER ASSEMBLY BS-848368
...
3
SEAL, Oil (Magneto Side) BS-841596
...
12
GASKET, Crankcase Used After Code Date 13072100 BS-846037
...
12A
GASKET, Crankcase Used Before Code Date 13072200 BS-844107
...
15
PLUG, Oil Drain BS-690946
...
239
SWITCH, Oil Pressure BS-841281
...
400
COOLER, Oil BS-846489
...
417
SCREW (Oil Cooler) (M6X8mm) Used Before Code Date 13072700 BS-843345
...
417A
SCREW (Oil Cooler) (M6x10mm) Used After Code Date 13072600 BS-841233
...
439
O-RING, Oil Gallery (Crankcase Cover/Sump or Cylinder Assembly) BS-692154
...
439A
O-RING, Oil Gallery (Crankcase Cover/Sump or Cylinder Assembly) Used After Code Date 13072100 BS-846027
...
448
COOLER, Oil BS-846489
...
490
BEARING, Magneto Side BS-843433
...
601A
CLAMP, Hose (Oil Cooler Hose) BS-841597
...
601C
CLAMP, Hose (Oil Cooler Hose) BS-845209
...
718
PIN, Locating (Cylinder) BS-690959
...
718A
PIN, Locating (Cylinder Head) BS-809508
...
829
HOSE, Oil Cooler BS-846155
...
1013
NIPPLE, Oil Filter BS-841602
...
1027
FILTER, Oil BS-842921
...
1058
MANUAL, Operator's BS-279774TRI
...
1155
WASHER (Oil Cooler) (Top) Used Before Code Date 13072700 BS-806647
...
1319
LABEL, Warning BS-794467
...
1330
MANUAL, Repair BS-272144
...
1366
DIVERTER, Oil Cooler BS-841510
...
1373
SCREW (Oil Cooler Bracket) BS-841233
...
1374
SEAL, O-Ring (Oil Cooler Diverter) BS-796863

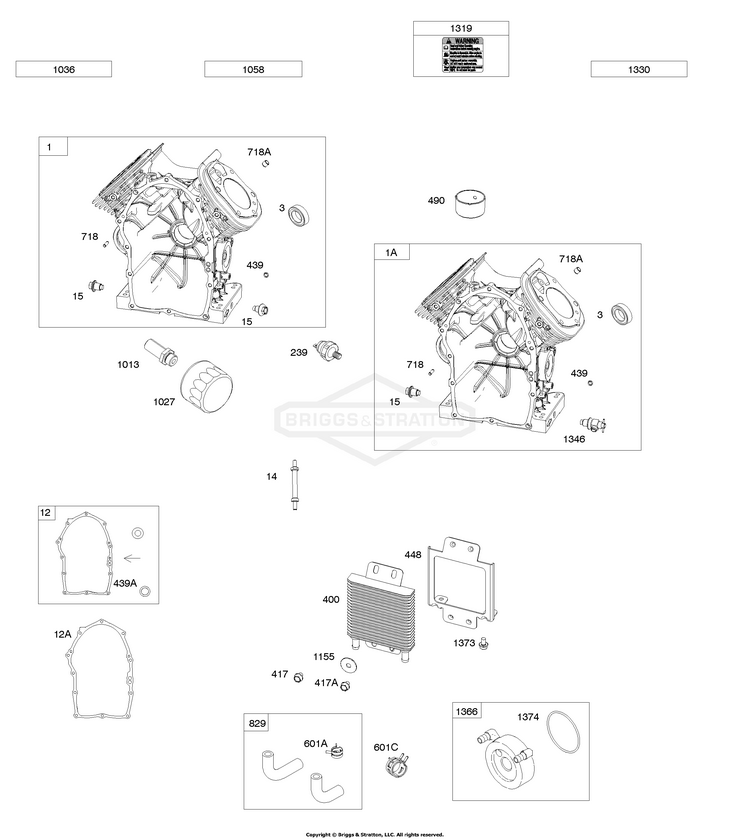

Schematic Image Zoomed
