614275-0111-G1 Briggs and Stratton Engine

Model: 614275-0111-G1

Back To Assemblies

Save Part Not Listed?
product name

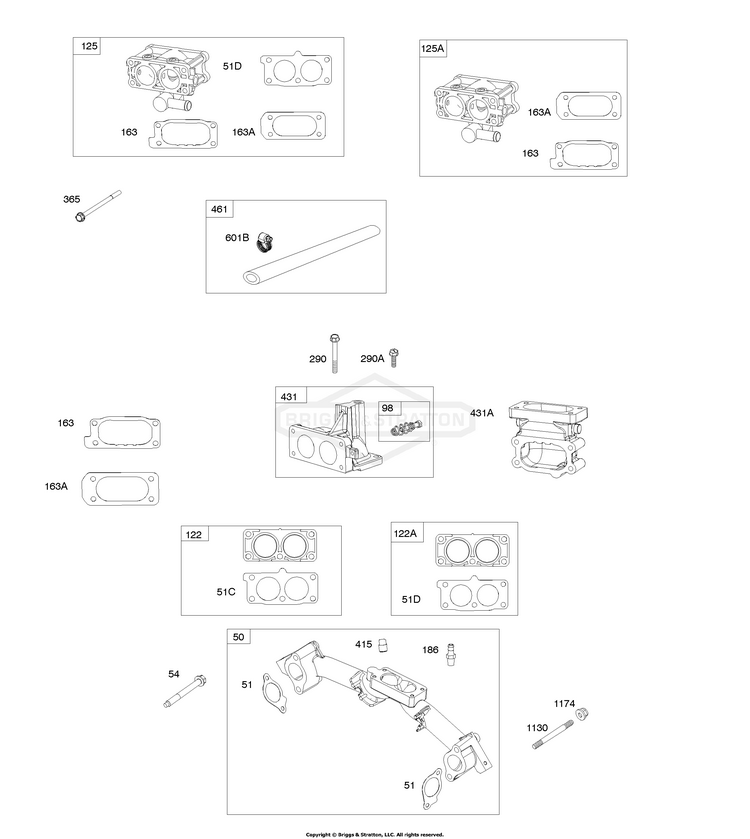

Carburetor/Mixers, Intake Elbows, Intake Manifold

...
...
50
MANIFOLD, Intake BS-844340
...
51D
GASKET, Intake BS-809910
...
54
SCREW (Intake Manifold) (M8x72mm) BS-844656
...
98
KIT, Idle Speed (Intake Elbow) BS-841842
...
122A
SPACER, Carburetor BS-844713
...
125
CARBURETOR BS-845853
...
163
GASKET, Air Cleaner BS-807375
...
163A
GASKET, Air Cleaner BS-843117
...
186
CONNECTOR-HOSE (Intake Manifold) BS-691764
...
290
SCREW (Intake Elbow) (M6x55mm) BS-809911
...
290A
SCREW (Intake Elbow) (M6x25mm) BS-807421
...
365
SCREW (Carburetor) (M6x103mm) BS-841853
...
415
PLUG BS-794903
...
431
ELBOW, Intake (Intake Manifold) BS-841539
...
431A
ELBOW, Intake BS-843116
...
461
HOSE, Gaseous Fuel (Gaseous Fuel Line - 40 Inches - Cut to Required Length) BS-845701
...
601B
CLAMP, Hose (Gaseous Fuel Connector Hose) BS-843438
