613477-0200-G1 Briggs and Stratton Engine

Model: 613477-0200-G1

Back To Assemblies

Save Part Not Listed?
product name

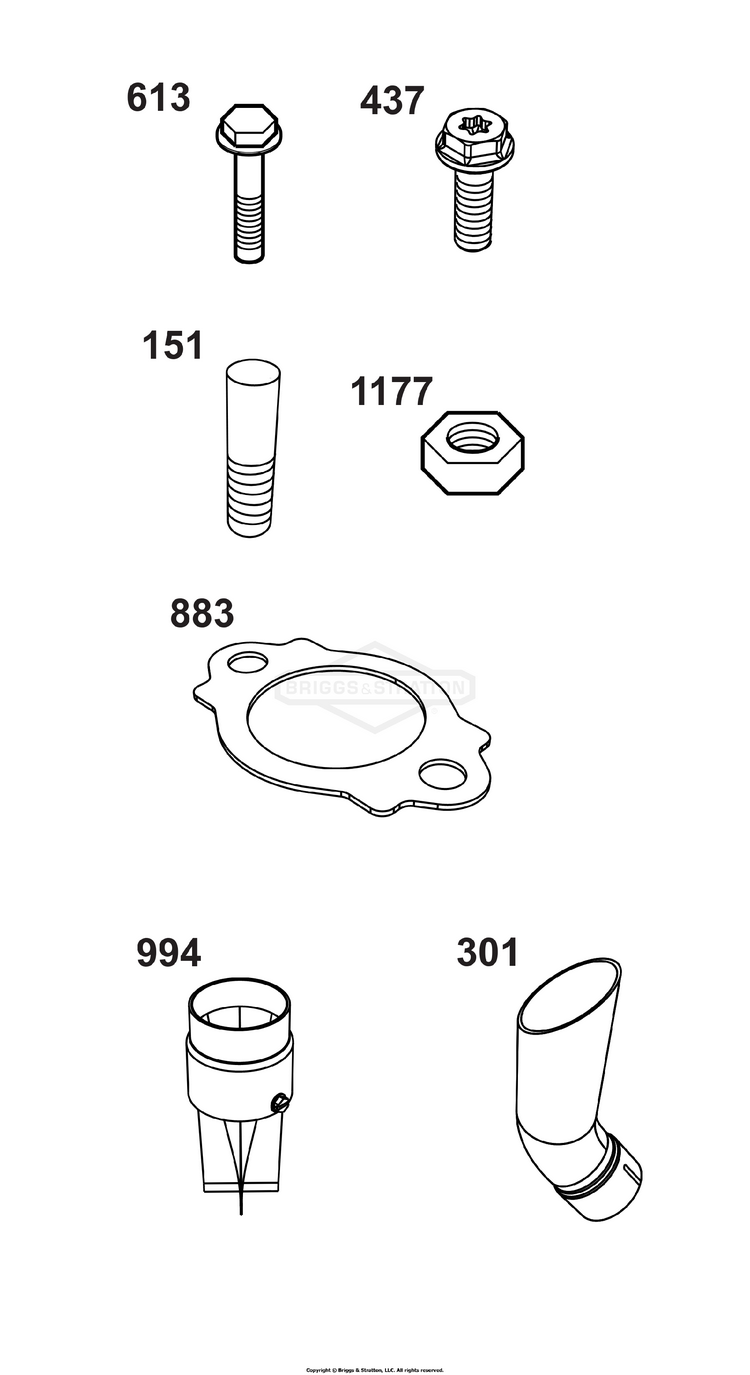

Spark Arrester/Deflector

...
...
151
STUD (4 per engine) BS-84006950
...
301
PIPE, Exhaust (For 44.7 O.D. muffler outlet pipe) (Requires clamp 843624) BS-841518
...
437
SCREW (M8 x 25 for Mounting Mufflers) (4 per engine) BS-846149
...
613
SCREW (M8 x 18 for Mounting Mufflers) (4 per engine) BS-692062
...
883
GASKET, Exhaust (2 per engine) BS-809872
...
994
ARRESTER, Spark (1.75") (44.7 mm) (O.D. Outlet Tube) BS-84012628
...
1177
NUT (Required if using 841185 stud) BS-842067
