613275-0006-E1 Briggs and Stratton Engine

Model: 613275-0006-E1

Back To Assemblies

Save Part Not Listed?
product name

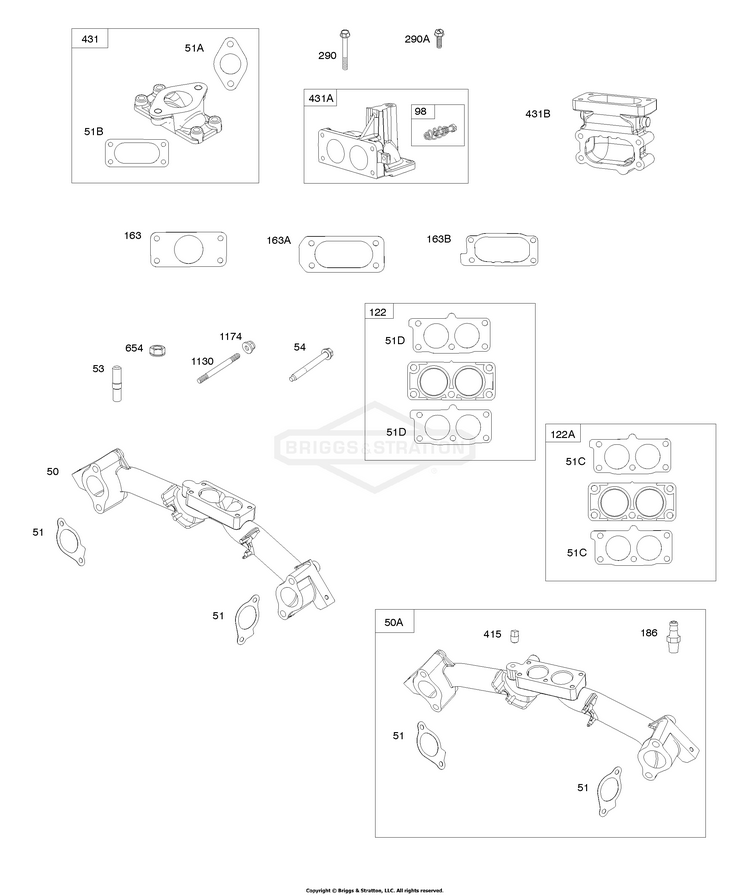

Intake Manifolds, Intake Elbows, Mixer Spacers

...
...
50A
MANIFOLD, Intake BS-844340
...
51C
GASKET, Intake (Carburetor Spacer) BS-841882
...
54
SCREW (Intake Manifold) (M8x72mm) Used After Code Date 10092900 BS-844656
...
98
KIT, Idle Speed (Intake Elbow) BS-841842
...
122
SPACER, Carburetor BS-844713
...
122A
SPACER, Carburetor BS-846245
...
163A
GASKET, Air Cleaner BS-843117
...
186
CONNECTOR-HOSE (Intake Manifold) BS-691764
...
290
SCREW (Intake Elbow) (M6x55mm) BS-809911
...
290A
SCREW (Intake Elbow) (M6x25mm) BS-807421
...
415
PLUG BS-794903
...
431B
ELBOW, Intake BS-843116
...
654
NUT (Carburetor) BS-842067
...
1130
STUD (Intake Manifold) Used Before Code Date 10093000 BS-841590
...
1174
NUT (Intake Manifold) Used Before Code Date 10093000 BS-842067
