613275-0003-E1 Briggs and Stratton Engine

Model: 613275-0003-E1

Back To Assemblies

Save Part Not Listed?
product name

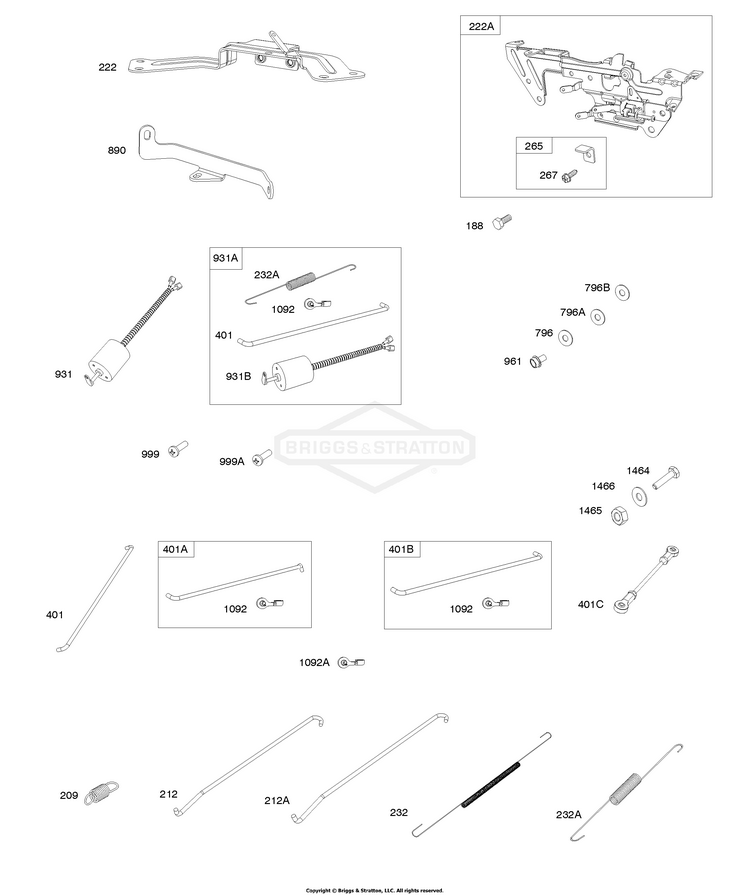

Control Brackets, Actuators, Springs, Links

...
...
188
SCREW (Control Bracket) (M6x18mm) BS-692062
...
212
LINK, Throttle BS-843454
...
222
BRACKET, Control Used After Code Date 10093000 BS-844420
...
232
SPRING/LINK, Governor BS-843248
...
265
CLAMP, Casing (Control Bracket) BS-841673
...
267
SCREW (Casing Clamp) (M5x20mm) BS-841552
...
401A
ROD Used After Code Date 12042300 BS-317323GS
...
796
WASHER (Actuator) BS-690260
...
890
BRACKET, Support BS-841614
...
931A
ACTUATOR BS-845912
...
961
SCREW (Air Cleaner Bracket) (To Actuator Bracket) BS-841233
...
1092
CLEVIS BS-845699
...
1464
SCREW (Actuator Link) BS-845832
...
1465
NUT (Actuator Link) BS-845831
...
1466
WASHER (Actuator Link) BS-690272
