613177-0112-E1 Briggs and Stratton Engine

Model: 613177-0112-E1

Back To Assemblies

Save Part Not Listed?
product name

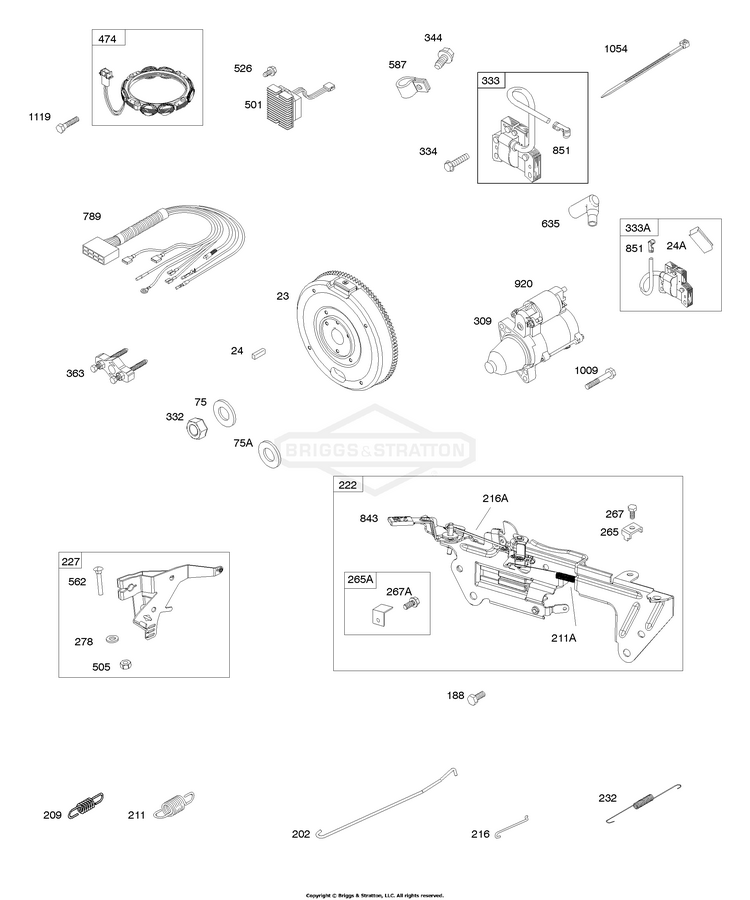

Alternator, Igntion, Flywheel, Starter Motor, Controls, Springs

...
...
23
FLYWHEEL (Steel Ring Gear) BS-841644
...
24
KEY, Flywheel BS-222698S
...
24A
KEY, Flywheel (Includes Offset Key) BS-843837
...
75
WASHER (Flywheel) (Belleville) Used Before Code Date 05051100 BS-691056
...
75A
SET, Washer/Nut (Flywheel) (Flat Washer) Used After Code Date 05051000 BS-844795
...
188
SCREW (Control Bracket) BS-692062
...
202
LINK, Mechanical Governor BS-841322
...
209
SPRING, Governor (Yellow) BS-841012
...
211
SPRING, Governed Idle BS-809875
...
211A
SPRING, Governed Idle BS-690707
...
216
LINK, Choke BS-809788
...
216A
LINK, Choke (Control Bracket) BS-841671
...
222
BRACKET, Control BS-841492
...
227
LEVER, Governor Control BS-809984
...
232
SPRING/LINK, Governor BS-690545
...
265
CLAMP, Casing BS-691024
...
265A
CLAMP, Casing BS-841673
...
267
SCREW (Casing Clamp) (M5x20mm) BS-841552
...
267A
SCREW (Casing Clamp) (M5x8mm) BS-841552
...
278
WASHER (Governor Control Lever) BS-842122
...
309
MOTOR, Starter (0.8KW) BS-84013103
...
332
SET, Washer/Nut (Flywheel) BS-844795
...
333
ARMATURE, Magneto Used After Code Date 06112900 BS-845126
...
333A
ARMATURE, Magneto (Includes Offset Key) Used Before Code Date 06113000 BS-843860
...
334
SCREW (Magneto Armature) BS-692066
...
344
SCREW (Cable Clamp) BS-841233
...
363
PULLER, Flywheel BS-19203
...
474
ALTERNATOR BS-696579
...
501
REGULATOR BS-84004837
...
505
NUT (Governor Lever) BS-690238
...
526
SCREW (Regulator) BS-807385
...
562
BOLT (Governor Lever) BS-843344
...
587
CLAMP, Cable BS-807386
...
635
BOOT, Spark Plug BS-692076
...
789
HARNESS, Wiring BS-807324
...
843
SLEEVE, Lever BS-809672
...
851
TERMINAL, Spark Plug BS-493880S
...
920
SOLENOID, Starter BS-825418
...
1009
SCREW (Starter Motor) BS-690711
...
1054
TIE, Cable BS-280275
...
1119
SCREW (Alternator) BS-691552
