612000x30NA Murray - Single Stage Snow Thrower (2003)

Model: 612000x30NA

Save
 Part Not Listed?Part Not Listed?
product name

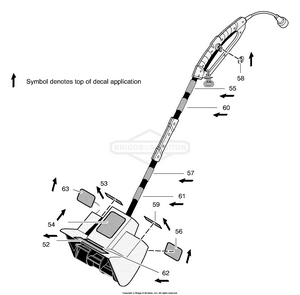

Decals

...
...
52
Decal, Danger Foot BS-761068
...
53
Decal, Caution E12 BS-761113MA
...
54
Decal, Murray BS-760780
...
55
Decal, Cord Usage 12/14" BS-761110
...
57
Decal, Pinched Wire BS-761112
...
58
Decal, Key Lock BS-903133
...
59
Decal, Caution BS-761114
...
60
Decal, Motor Protection BS-762049
...
61
Decal, Motor Protection BS-762050
...
62
Decal, Warning BS-783027MA
...
63
Decal, Caution Rain BS-48X5236

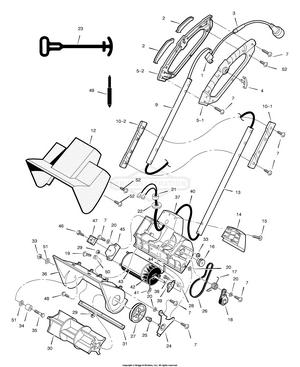

General Assembly

...
...
1
Switch, Trigger BS-780083MA
...
2
Trigger, Lever 12" BS-578558MA
...
3
Lead, Connecting BS-578568
...
4
Key -Double Notch BS-780625MA
...
5
Set, Grip Trigger L&R 12" BS-578954
...
7
Screw, #8 X 3/4 Poly BS-1694MA
...
9
Tube -Handle, Upper BS-578847E701MA
...
10
Set, Grip Center 12" BS-578472MA
...
12
Housing, Upper 12" BS-577394
...
13
Handle, Lower BS-577444E701
...
14
Housing, Rear 12" BS-577450
...
15
Screw, 10-9 X 1.062 BS-780115MA
...
16
Pulley, Engine BS-580255
...
17
Spring, Torsion BS-577502
...
18
Pulley, Idler & Brkt. Assy BS-578732
...
19
Screw, #8 X1.00 BS-578928
...
20
#8 Washer BS-1501547
...
21
Clamp, Heyco BS-780026
...
22
Washer, Flat .505 X 1.00X.06 BS-73812
...
23
Strain Relief, Cord BS-10542MA
...
24
Bracket, Assy Drive Pulley BS-577536
...
25
Bearing-Bronze BS-904970MA
...
26
Belt BS-37X133
...
27
Pulley, Driven E12" BS-577396
...
28
WASHER, PLASTIC .315X BS-6711MA
...
29
NUT#10-24 MCLEANLOCK BS-015X81MA
...
30
Impeller, 12" BS-577395
...
31
Blade, Scraper BS-577447MA
...
33
NUT,25-20 HEX FLG CTR BS-15X143MA
...
34
Spacer, Impeller BS-582947
...
35
SCREW, 1/4-20 X 1.00 BS-710263MA
...
36
Housing, Impel 12" BS-577393
...
37
Housing, Lower 12" BS-577392
...
38
SCREW, 1/4-20X .50 HH BS-313686MA
...
39
Bearing, Self Align BS-904975
...
40
Wire Harness, E12" BS-905018MA
...
41
RING, RET E .30X.04TR BS-577598MA
...
42
Fan, Motor, Extended BS-760256MA
...
43
Motor, 120V BS-1501639
...
44
Pin, Grooved BS-12569MA
...
45
Bracket, Motor Mount BS-577451
...
46
Screw, #6-32X.75 BS-905135
...
47
Rectifier, Full Wave BS-780062MA
...
48
Screw, 10-32X.50 BS-577534
...
49
Probe, Plastic BS-1740
...
50
Plug, Retainer BS-578957
...
51
Washer, 3/4X1/4X1/16 BS-780234
...
52
Screw, #8X.375 Poly Grip BS-1501757
...
--
Book, Instruction BS-F-031043C

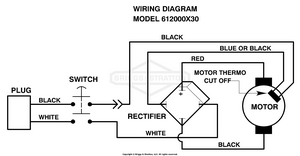

Wiring Diagram

...

No Parts Available for this Schematic

...
...
...
