612000x30A Murray - Single Stage Snow Thrower (2000)

Model: 612000x30A

Save
 Part Not Listed?Part Not Listed?
product name

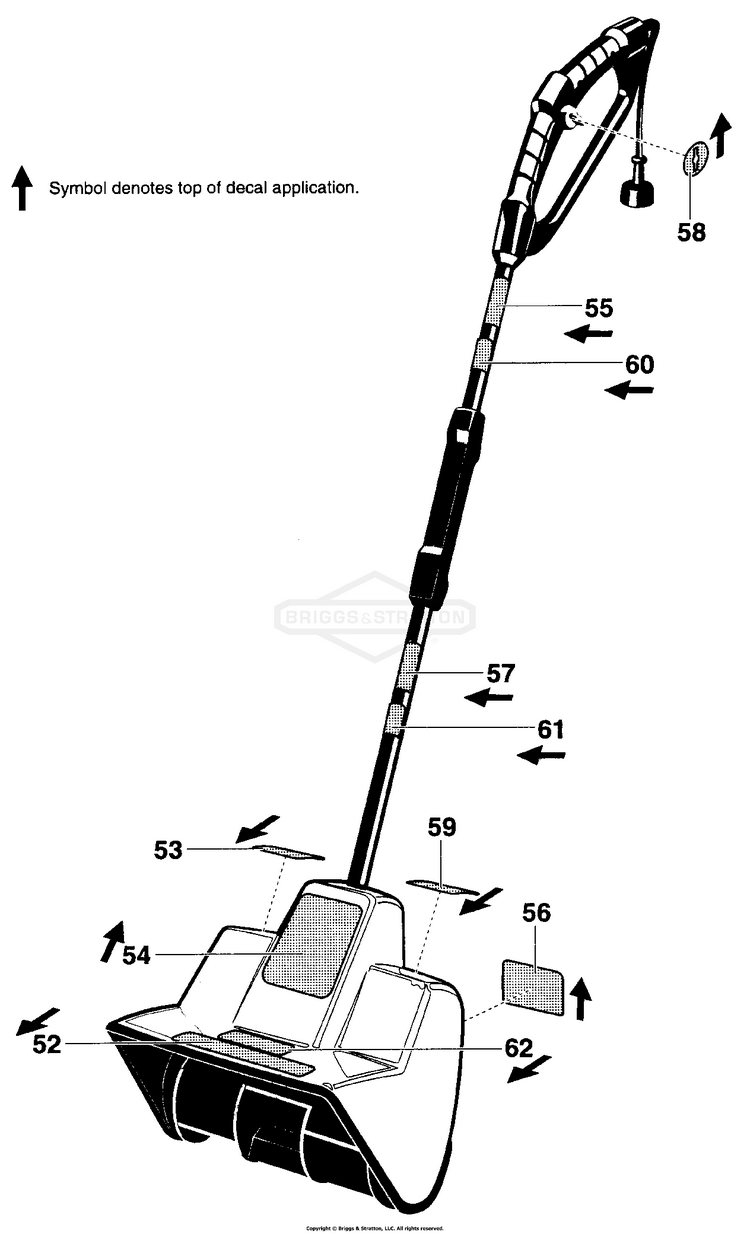

Decals

...
...
52
DECAL, DANGER FOOT BS-905553
...
53
DECAL, CAUTION E12 BS-761113MA
...
54
DECAL, MURRAY BS-577549
...
55
DECAL, CORD USAGE 12/14" BS-901763
...
57
DECAL, PINCHED WIRE BS-901765
...
58
DECAL, KEY LOCK BS-903133
...
59
DECAL, CAUTION BS-577593
...
60
DECAL, MOTOR PROTECTION BS-762049
...
61
DECAL, MOTOR PROTECTION BS-762050
...
62
DECAL, WARNING BS-905778

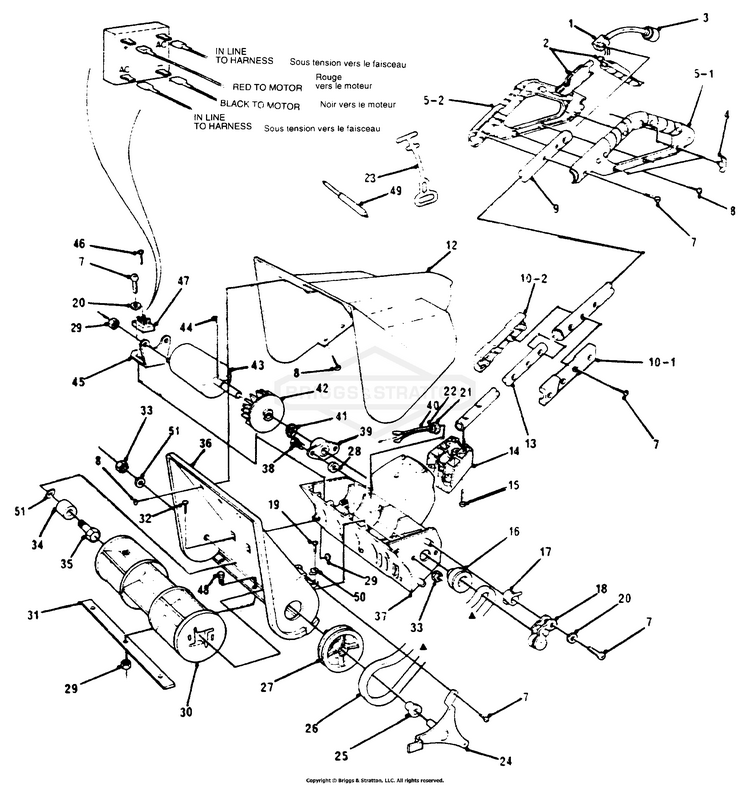

Illustrated Parts List

...
...
1
SWITCH, TRIGGER BS-780083MA
...
2
TRIGGER, LEVER 12" BS-578558MA
...
3
LEAD, CONNECTING BS-578568
...
4
KEY-DOUBLE NOTCH BS-780625MA
...
5
SET, GRIP TRIGGER L&R 12" BS-578954
...
7
SCREW, #8 X 3/4 POLY BS-1694MA
...
8
SCREW, #8 X.50 POLY BS-901696
...
9
TUBE - HANDLE, UPPER BS-578847-853
...
10
SET, GRIP CENTER 12" BS-578472MA
...
12
HOUSING, UPPER 12" BS-577394
...
13
HANDLE, LOWER BS-577444-853
...
14
HOUSING, REAR 12" BS-577450
...
15
SCREW, 10-9 X 1.062 BS-780115MA
...
16
PULLEY, ENGINE BS-580255
...
17
SPRING, TORSION BS-577502
...
18
PULLEY, IDLER & BRKT. ASSY BS-578732
...
19
SCREW, #8 X1.00 BS-578928
...
20
WASHER, FLAT #8 SAE BS-901736
...
21
CLAMP, HEYCO BS-780026
...
22
WASHER, FLAT .505X1.00X.06 BS-73812
...
23
STRAIN RELIEF, CORD BS-10542MA
...
24
BRACKET, ASSY DRIVE PULLEY BS-579105
...
25
BEARING-BRONZE BS-904970MA
...
26
BELT, V 3L DRIVE BS-577453MA
...
27
PULLEY, DRIVEN E12" BS-577396
...
28
WASHER, PLASTIC .315X BS-6711MA
...
29
NUT, #10-32 HNYLLK BS-071056MA
...
30
IMPELLER, 12" BS-577395
...
31
BLADE, SCRAPER BS-577447MA
...
32
SCREW, 10-32X .50 BS-577534
...
33
NUT, 1/4-20 BS-703251
...
34
SPACER, IMPELLER BS-582947
...
35
SCREW, 1/4-20X1.00 BS-56934MA
...
36
HOUSING, IMPEL 12" BS-577393
...
37
HOUSING, LOWER 12" BS-577392
...
38
SCREW, 1/4-20X .50 BS-180016MA
...
39
BEARING, SELF ALIGN BS-904975
...
40
WIRE HARNESS, E12" BS-905018MA
...
41
RING, RET E .30X.04TR BS-577598MA
...
42
FAN,MOTOR,EXTENDED BS-760256MA
...
43
MOTOR,120V BS-586949
...
44
PIN, GROOVED BS-12569MA
...
45
BRACKET, MOTOR MOUNT BS-579106
...
46
SCREW, #6-32X .75 BS-905135
...
47
RECTIFIER, FULL WAVE BS-780062MA
...
48
SCREW, 10-32X .50 BS-578408
...
49
PROBE, PLASTIC BS-1740
...
50
PLUG, RETAINER BS-578957
...
51
WASHER, 3/4 X 1/4 X 1/16 BS-780234
...
...
...
