611477-0112-E1 Briggs and Stratton Engine

Model: 611477-0112-E1

Back To Assemblies

Save Part Not Listed?
product name

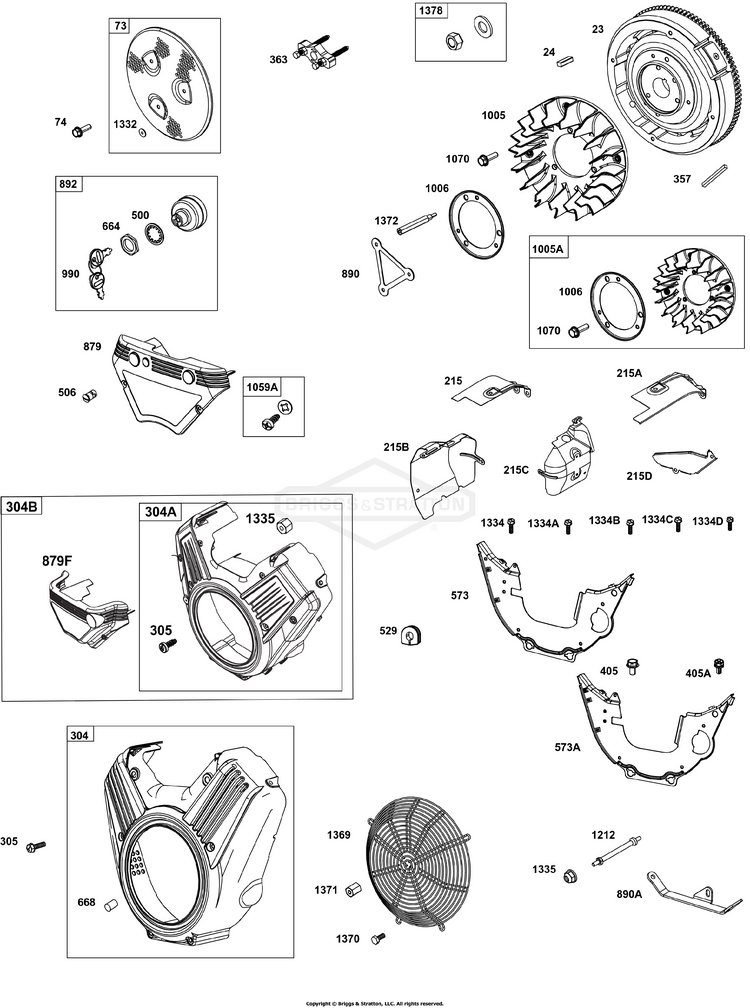

Blower Housing, Flywheel, Air Guides

...
...
23
FLYWHEEL BS-844385
...
24
KEY, Flywheel (Steel) Used After Code Date 07122700 BS-796335
...
24
KEY, Flywheel (Aluminum) Used Before Code Date 07122800 BS-222698S
...
73
SCREEN, Rotating BS-841840
...
74
SCREW (Rotating Screen) BS-809947
...
215
GUIDE, Air (Cylinder 1) BS-809728
...
215A
GUIDE, Air (Cylinder 2) BS-809737
...
215B
SHIELD, Cylinder (Cylinder #2) BS-84013677
...
215C
SHIELD, Cylinder (Cylinder #1) BS-84013676
...
215D
GUIDE, Air (Valley) BS-809739
...
304
HOUSING, Blower Used Before Code Date 23122100 (No Longer Available) (See Reference 304B for Service) BS-846481
...
304A
HOUSING, Blower Used After Code Date 23122000 BS-84011458
...
304B
KIT, Blower Housing BS-84013458
...
305
SCREW (Blower Housing) (M6x20mm) BS-807435
...
363
PULLER, Flywheel BS-19203
...
405
SCREW (Back Plate) (M6x10mm) BS-841233
...
405A
SCREW (Back Plate) (M6x14mm) BS-841735
...
500
WASHER (Key Switch) BS-691086
...
506
SCREW (Carburetor/EFI Cover) Used Before Code Date 11041800 BS-809957
...
529
GROMMET BS-690744
...
573
PLATE, Back BS-846840
...
664
NUT (Key Switch) BS-691087
...
668
SPACER (Blower Housing) BS-841974
...
879
COVER, Carburetor/EFI Used Before Code Date 23122100 (No Longer Available) (See Reference 304B for Service) BS-809955
...
879F
COVER, Carburetor/EFI Used After Code Date 23122000 BS-84011180
...
890
BRACKET, Support (Rotating Screen) BS-809987
...
890A
BRACKET, Support BS-841614
...
892
SWITCH, Key BS-692318
...
990
SET, Key BS-691959
...
1005
FAN, Flywheel Used After Code Date 15080600 BS-84006946
...
1005A
FAN, Flywheel Used Before Code Date 15080700 BS-847199
...
1006
RETAINER, Fan BS-847198
...
1059A
KIT, SCREW/WASHER (Carburetor/EFI Cover) Used After Code Date 11041700 BS-84008343
...
1070
SCREW (Flywheel Fan) BS-807435
...
1212
STUD (Blower Housing) BS-809958
...
1332
WASHER (Rotating Screen) BS-809948
...
1334
SCREW (Air Guide) (M6x20mm) BS-807435
...
1334A
SCREW (Air Guide) (M6x10mm) BS-841233
...
1334B
SCREW (Air Guide) (M6x14mm) BS-807084
...
1334C
SCREW (Air Guide) (M4x12mm) BS-690677
...
1334D
SCREW (Air Guide) (M8x18mm) BS-692062
...
1335
NUT (Blower Housing) BS-841537
...
1369
GUARD, Flywheel Fan BS-842858
...
1370
SCREW (Flywheel Fan Guard) BS-841233
...
1371
NUT (Flywheel Fan Guard) BS-841537
...
1372
FAN, Flywheel (Rotating Screen) BS-84006946
...
1378
SET, Washer/Nut (Flywheel) BS-844795
