611177-0100-E1 Briggs and Stratton Engine

Model: 611177-0100-E1

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

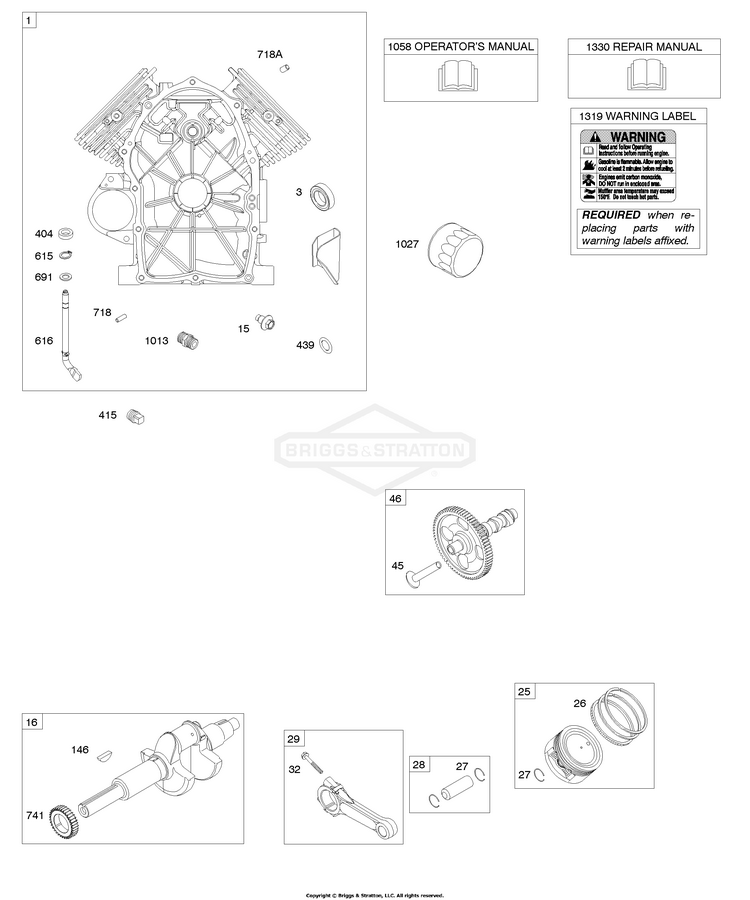

Cylinder, Crankshaft, Piston/Rings/Connecting Rod

...
...
1
CYLINDER ASSEMBLY BS-842556
...
3
SEAL, Oil (Magneto Side) BS-841596
...
15
PLUG, Oil Drain BS-807392
...
16
CRANKSHAFT BS-848305
...
25
PISTON ASSEMBLY (Standard) BS-809790
...
25
PISTON ASSEMBLY (.020 Oversize) BS-841931
...
26
SET, Ring (Standard) BS-809972
...
27
LOCK, Piston Pin BS-807351
...
28
PIN, Piston BS-807361
...
29
ROD, Connecting (Standard) BS-841838
...
45
TAPPET, Valve BS-809785
...
46
CAMSHAFT BS-847381
...
146
KEY, Woodruff BS-691639
...
404
WASHER (Governor Crank) BS-809436
...
415
PLUG (Intake Manifold) or (Oil Pressure Switch) BS-794903
...
439
O-RING, Oil Gallery (Crankcase Cover/Sump) or (Cylinder Assembly) BS-692154
...
615
RETAINER, Governor Shaft BS-809533
...
616
CRANK, Governor BS-844180
...
691
SEAL, Governor Shaft BS-809287
...
718
PIN, Locating BS-690959
...
718A
PIN, Locating BS-809508
...
741
GEAR, Timing BS-809432
...
1013
NIPPLE, Oil Filter BS-809505
...
1027
FILTER, Oil BS-842921
...
1058
MANUAL, Operator's BS-MS3815
...
1319
LABEL, Warning BS-794467
...
1330
MANUAL, Repair BS-275429
