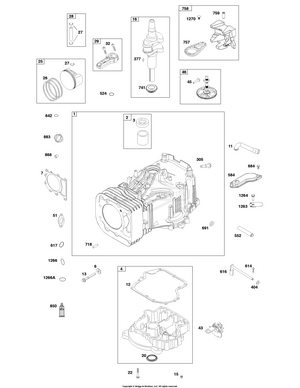

592057 Briggs and Stratton Short Block Assembly

Model: 592057

Save
Part Not Listed?Part Not Listed?
product name

592057

...
...
1
CYLINDER ASSEMBLY BS-591465

...
2
KIT, Bushing/Seal (Magneto Side) BS-797673

...
3
SEAL, Oil (Magneto Side) BS-391086S

...
4
SUMP, Engine BS-697106

...
6
WASHER (Cylinder Head) BS-690310

...
7
GASKET, Cylinder Head BS-794114

...
11
TUBE, Breather BS-794683

...
12
GASKET, Crankcase BS-697110

...
13
SCREW (Cylinder Head) BS-592244

...
15
PLUG, Oil Drain BS-690946

...
16
CRANKSHAFT BS-596006

...
20
SEAL, Oil (PTO Side) BS-795387

...
22
SCREW (Crankcase Cover/Sump) BS-692125

...
25
PISTON ASSEMBLY BS-795858

...
25
PISTON ASSEMBLY (.020 Oversize) BS-795877

...
26
SET, Ring BS-794126

...
26
SET, Ring (.020 Oversize) BS-794127

...
27
LOCK, Piston Pin BS-698469

...
28
PIN, Piston BS-594455

...
29
ROD, Connecting BS-794122

...
32
SCREW (Connecting Rod) BS-791118

...
43
SLINGER, Governor/Oil BS-691968

...
45
TAPPET, Valve BS-690564

...
46
CAMSHAFT BS-84005207

...
51
GASKET-INTAKE BS-692137

...
305
SCREW (Blower Housing) BS-596718

...
377
KEY, Woodruff BS-691639

...
404
WASHER (Governor Crank) BS-691691

...
524
SEAL, O-Ring (Dipstick Tube) BS-691032

...
552
BUSHING, Governor Crank BS-697144

...
584
COVER, Breather Passage BS-794682

...
614
PIN, Cotter BS-691620

...
616
CRANK, Governor BS-692012

...
617
SEAL, O-Ring (Intake Manifold) BS-692138

...
684
SCREW (Breather Passage Cover) BS-697157

...
691
SEAL, Governor Shaft BS-692407

...
718
PIN, Locating BS-690959

...
741
GEAR, Timing BS-697128

...
757
LINK, Counterweight BS-793242

...
758
COUNTERWEIGHT BS-793763

...
759
PIN, Counterweight BS-697392

...
842
SEAL, O-Ring (Dipstick Cap) BS-691031

...
850
SEALANT, Liquid BS-100106

...
868
SEAL, Valve BS-690968

...
883
GASKET, Exhaust BS-692236

...
1263
REED, Breather BS-697124

...
1264
SCREW (Breather Reed) BS-697104

...
1266
SEAL, O-Ring (Intake Elbow) BS-691917

...
1266A
SEAL, O-Ring (Intake Elbow) BS-697123

...
1270
PLUG, AVS Counterweight BS-793243
...
...
...
