5520-0 Briggs and Stratton Portable Generator S5020F, S4,000 Watt

Model: 5520-0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

AC Generator

...
...

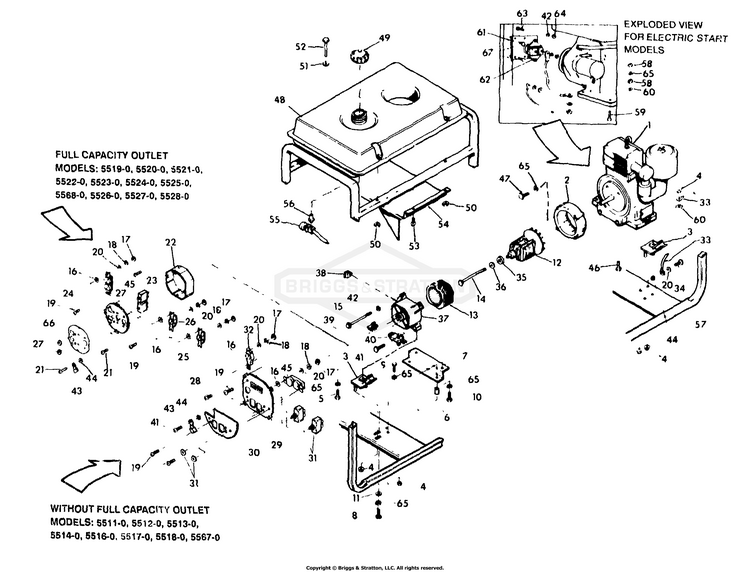

1
HRN TACH DASH for MODELS 3511-0, 5519-0 BS-7078258YP
...
ENG. TECUMSEH 8HP. for MODELS 5512-0, 5520-0 BS-78259
...
ENG. BRIGGS & STRATTON 8HP. FOR MODELS: 5513-0, 5521-0 BS-76516
...
ENG. BRIGGS & STRATTON 8HP. FOR MODELS: 5514-0, 5522-0 BS-78262
...
HARNESS WINCH MAIN BS-7078260YP
...
HARNESS WINCH DASH BS-7078261YP
...
ENG. BRIGGS & STRATTON 8HP. FOR MODELS: 5518-0, 5525-0 BS-77398
...
ENG. BRIGGS & STRATTON 8HP. FOR MODELS: 5567-0 BS-78266
...
ENG. BRIGGS & STRATTON 8HP. FOR MODELS: 5568-0 BS-77399
...
ENG. TECUMSEH 10HP. FOR MODELS: 5527-0 BS-78264
...
ENG. TECUMSEH 10 HP. FOR MODELS: 5528-0 BS-78281
...
ENG. TECUMSEH 10HP. BS-78263
...
2
ADPTR, HSNG, 8 HP BS-66365DGS
...
HOUSING, Engine Adapter BS-66365GGS
...
3
MOUNT, Vibration 45°. BS-70642GS
...
MOUNT, Vibration 45°. QUANTITY FOR MODELS WITH TECUMSEH ENGINE. Models 5511-0, 5512-0, 5519-0, 5520-0, 5526-0, 5527-0, 5528-0. BS-70642GS
...
4
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
NUT, Locking Hex M8 - 1.25 QUANTITY FOR MODELS WITH TECUMSEH ENGINE. Models 5511-0, 5512-0, 5519-0, 5520-0, 5526-0, 5527-0, 5528-0. BS-52858GS
...
5
SCREW BS-70644GS
...
6
VIBRATION MOUNT BS-44624
...
7
SUPPORT, ALTERNATOR BS-73078
...
8
SCREW, HEX-5/16"-18 X 3/4" BS-30332
...
9
SCREW, HEX-5/16-18 X 1/2" BS-36223
...
10
CAPSCREW M8-1.25X16 BS-703988
...
12
ROTOR-ASSEMBLY BS-74715
...
ROTOR ASSEMBLY BS-74716
...
13
STATOR ASSEMBLY BS-74708
...
STATOR ASSEMBLY BS-74709
...
14
HHCS, 5/16" - 24 x 7-7/8" BS-24823GS
...
CAPSCREW, Hex Head BS-75431GS
...
15
BOLT, M6-1.0 X 115 BS-66449E
...
BOLT, M6-1.0 X 130 BS-66449D
...
16
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
TIRE ASSM, 24X12.00-1 QUANTITY FOR MODELS WITH FULL CAPACITY OUTLET: Models 5519-0, 5520-0, 5521-0, 5522-0, 5523-0, 5524-0, 5525-0, 5568-0, 5526-0, 5527-0, 5528-0. BS-5023365YP
...
17
NUT, M4-0.7 Hex BS-51715GS
...
NUT, M4-0.7 Hex QUANTITY FOR MODELS WITH FULL CAPACITY OUTLET: Models 5519-0, 5520-0, 5521-0, 5522-0, 5523-0, 5524-0, 5525-0, 5568-0, 5526-0, 5527-0, 5528-0. BS-51715GS
...
18
LOCK WASHER #8 BS-22264
...
LOCK WASHER #8 QUANTITY FOR MODELS WITH FULL CAPACITY OUTLET: Models 5519-0, 5520-0, 5521-0, 5522-0, 5523-0, 5524-0, 5525-0, 5568-0, 5526-0, 5527-0, 5528-0. BS-22264
...
19
SCREW, PAN HD. M4-0.7 X 10 BS-75475
...
SCREW, PAN HD. M4-0.7 X 10 QUANTITY FOR MODELS WITH FULL CAPACITY OUTLET: Models 5519-0, 5520-0, 5521-0, 5522-0, 5523-0, 5524-0, 5525-0, 5568-0, 5526-0, 5527-0, 5528-0. BS-75475
...
20
WASHER BS-38150GS
...
WASHER QUANTITY FOR MODELS WITH FULL CAPACITY OUTLET: Models 5519-0, 5520-0, 5521-0, 5522-0, 5523-0, 5524-0, 5525-0, 5568-0, 5526-0, 5527-0, 5528-0. BS-38150GS
...
21
SCREW, PHILLIPS #10-32 X 3/8 BS-36933
...
22
BRKT, TRACTION CABLE BS-7072280YP
...
23
SCREW, PAN HEAD-M5-0.80 X 25 BS-73540
...
24
WELD UPPER SHIFTER BS-7058295YP
...
25
OUTLET, 120/240V Locking, 20A BS-68867GS
...
26
OUTLET-120V TL30A BS-705932
...
27
BRKR, CRCT, 20A, 2P BS-77247GS
...
28
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
29
PANEL BS-72098
...
30
DECAL S4000 SERIES BS-78274
...
31
CIRCUIT BREAKER-20AMP BS-66819
...
32
OUTLET 240 VOLT 20AMP BS-68735
...
33
GROUND WIRE BS-10953621
...
34
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
35
BEARING BS-65791GS
...
36
WASHER, M8 Flat BS-67451
...
37
REAR BEARING CARRIER BS-66825
...
38
GROMMET, RUBBER BS-67022GS
...
39
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
40
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
41
HHCS, M5-0.8 X 16 BS-49815GS
...
HHCS, M5-0.8 X 16 QUANTITY FOR MODELS WITHOUT FULL CAPACITY OUTLET. Models 5511-0, 5512-0, 5513-0, 5514-0, 5517-0, 5518-0, 5567-0. BS-49815GS
...
42
CAP BS-5022097SM
...
CAP BS-5022097SM
...
43
GROUNDING LUG BS-25433
...
44
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
45
OUTLET, 20A,120V BS-68759GS
...
46
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
47
SCREW, HEX-5/16-24 X 3/4" BS-22336
...
48
FUEL TANK BS-77374
...
49
CAP, FUEL TANK BS-78824
...
50
NUT, FLANGE LOCK - M6 BS-77395GS
...
51
WSHR, SPCL, BLK BS-78830GS
...
52
SCREW, HEX-M6-1.0 X 55 BS-78831
...
53
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
54
HEAT SHIELD BS-78951A
...
HEAT SHIELD BS-78951B
...
55
PULLEY CATCHER HZT/ BS-7078298YP
...
56
Kit, Valve BS-192980GS
...
57
CRADLE ASSEMBLY BS-75987
...
CRADLE ASSEMBLY QUANTITY FOR MODELS WITH LARGE, 5-GAL. PLASTIC TANKS: Models 5512-0, 5514-0, 5517-0, 5567-0, 5520-0, 5522-0, 5524-0, 5527-0, 5528-0. BS-77840
...
58
SKID PLATE BS-5045771B
...
59
SCREW BS-39287GS
...
60
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
61
BRACKET, STARTER SWITCH BS-78289GS
...
62
STARTER, SWITCH BS-77282
...
63
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
64
NUT, 1/4-20 BS-22127
...
65
WASHER, Lock BS-22129GS
...
WASHER, Lock BS-22129GS
...
WASHER, Lock BS-22129GS
...
WASHER, Lock BS-22129GS
...
66
DECAL-S-4000 SERIES BS-78275
...
DECAL-S-5000 SERIES BS-78276
...
67
SCREW, SELF DRILL, #10 BS-75494

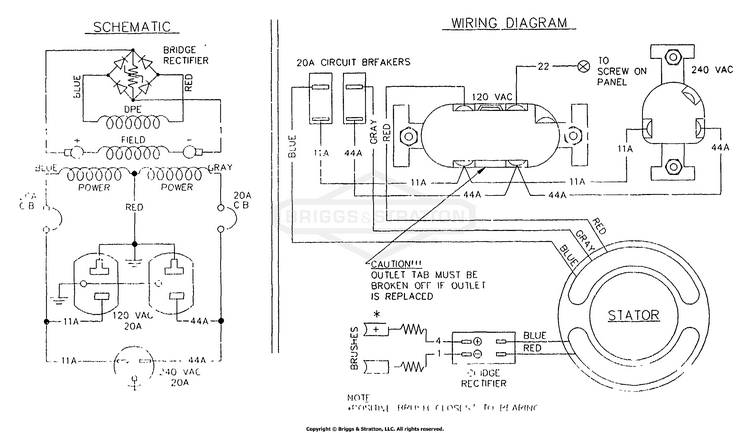

Wiring Diagram & Schematic S-5000 & S-4000 Full Capacity

...

No Parts Available for this Schematic

Wiring Diagram & Schematic Standard S-4000 Series

...

No Parts Available for this Schematic
