54E177-0003-J1 Briggs and Stratton Engine

Model: 54E177-0003-J1

Back To Assemblies

Save Part Not Listed?
product name

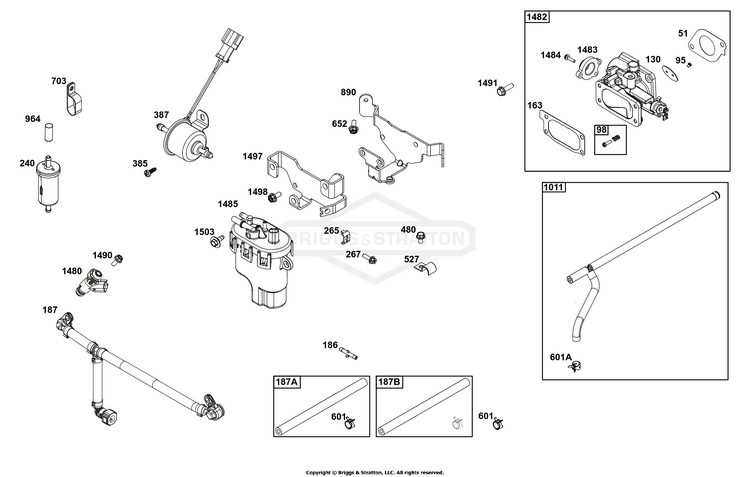

Throttle Body and Fuel Supply Group

...
...
95
SCREW (Throttle Valve) BS-593897
...
98
KIT, Idle Speed BS-797156
...
130
VALVE, Throttle BS-846808
...
186
CONNECTOR, Hose BS-845121
...
187
LINE, Fuel BS-846475
...
187A
LINE, Fuel BS-791766
...
187B
LINE, Fuel BS-791745
...
240
FILTER, Fuel BS-845125
...
385
SCREW (Fuel Pump) BS-84006665
...
387
PUMP, Fuel BS-846824
...
480
SCREW (Tube Clamp) BS-841233
...
527
CLAMP, Tube BS-690423
...
601
CLAMP, Hose BS-691038
...
601A
CLAMP, Hose BS-846483
...
652
SCREW (Support Bracket) BS-807084
...
703
CLIP BS-594364
...
890
BRACKET, Support BS-846506
...
964
CAP, Connector BS-590799
...
1011
TUBE, Vent BS-847085
...
1480
INJECTOR, Fuel BS-593852
...
1482
BODY, Throttle BS-846807
...
1483
COVER, Dust BS-593895
...
1484
SCREW (Dust Cover) BS-847169
...
1485
MODULE, Fuel BS-593890
...
1490
SCREW (Fuel Injector) BS-807084
...
1491
SCREW (Throttle Body) BS-807435
...
1497
BRACKET, Fuel Module BS-846505
...
1498
SCREW (Fuel Module Bracket) BS-807084
...
1503
SCREW (Fuel Module) BS-594618
