54E177-0001-J1 Briggs and Stratton Engine

Model: 54E177-0001-J1

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

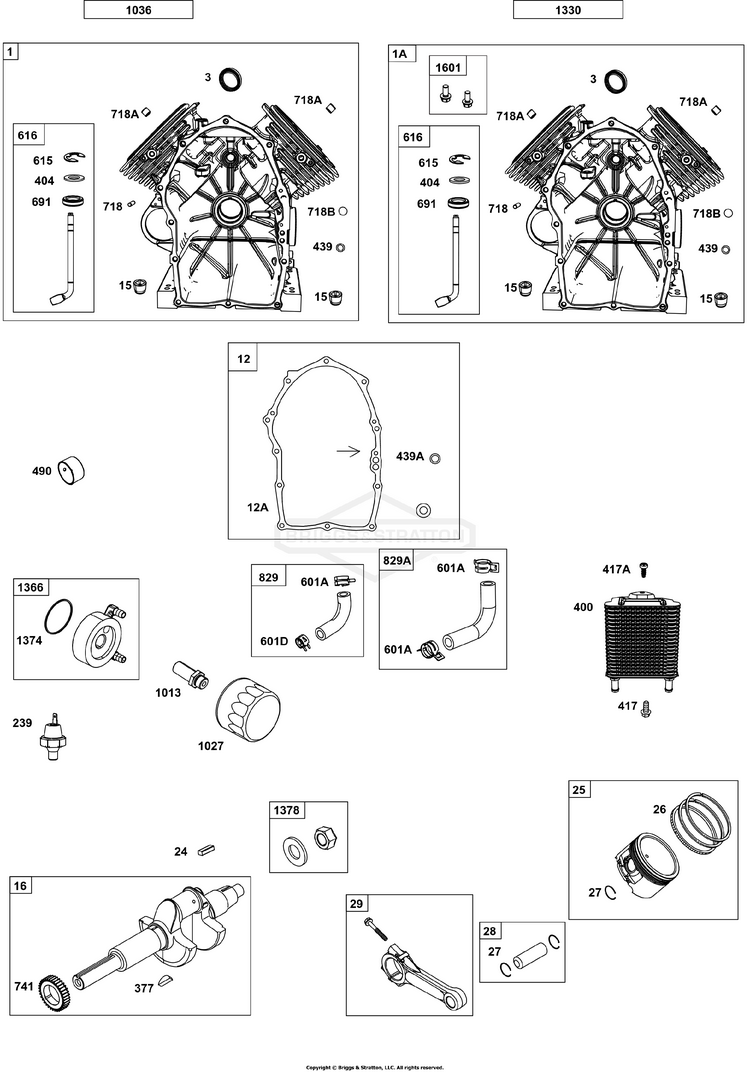

Cylinder, Crankshaft, Piston/Rings/Connecting Rod

...
...
1
CYLINDER ASSEMBLY BS-848361
...
1A
CYLINDER ASSEMBLY BS-84013607
...
3
SEAL, Oil (Magneto Side) BS-841596
...
12
GASKET, Crankcase (Metal Core Gasket) BS-846037
...
12A
GASKET, Crankcase (Metal Core Gasket) BS-843969
...
15
PLUG, Oil Drain BS-691680
...
16
CRANKSHAFT BS-843292
...
24
KEY, Flywheel (Steel) BS-796335
...
25
PISTON ASSEMBLY (Standard) BS-809790
...
25
PISTON ASSEMBLY (.020 Oversize) BS-841931
...
26
SET, Ring (Standard) BS-809972
...
27
LOCK, Piston Pin BS-807351
...
28
PIN, Piston BS-807361
...
29
ROD, Connecting BS-809275
...
239
SWITCH, Oil Pressure BS-697049
...
377
KEY, Woodruff BS-691639
...
400
COOLER, Oil BS-846249
...
404
WASHER (Governor Crank) BS-809436
...
417
SCREW (Oil Cooler) (M6x10mm) BS-841233
...
417A
SCREW (Oil Cooler) (M6x16mm) BS-84006665
...
439
O-RING, Oil Gallery (Crankcase Cover/Sump or Cylinder Assembly) (Cylinder) BS-692154
...
439A
O-RING, Oil Gallery (Crankcase Cover/Sump or Cylinder Assembly) (Crankcase Cover/Sump) BS-846027
...
490
BEARING, Magneto Side BS-843433
...
601A
CLAMP, Hose (Oil Cooler Hose) BS-841597
...
601D
CLAMP, Hose (Oil Cooler Hose) BS-845209
...
615
RETAINER, Governor Shaft BS-809533
...
616
CRANK, Governor BS-844180
...
691
SEAL, Governor Shaft BS-809287
...
718
PIN, Locating (Cylinder) BS-690959
...
718A
PIN, Locating (Cylinder Head) BS-809508
...
718B
PIN, Locating (Cylinder) BS-845925
...
741
GEAR, Timing BS-809432
...
829
HOSE, Oil Cooler BS-846155
...
829A
HOSE, Oil Cooler BS-846155
...
1013
NIPPLE, Oil Filter BS-841602
...
1027
FILTER, Oil BS-842921
...
1366
DIVERTER, Oil Cooler BS-841510
...
1374
SEAL, O-Ring (Oil Cooler Diverter) BS-796863
...
1378
SET, Washer/Nut (Flywheel) BS-844795
...
1601
KIT, Hardware "Only For Use<BR/> With Reference 1A" BS-84013604
