543477-0017-J1 Briggs and Stratton Engine

Model: 543477-0017-J1

Back To Assemblies

Save Part Not Listed?
product name

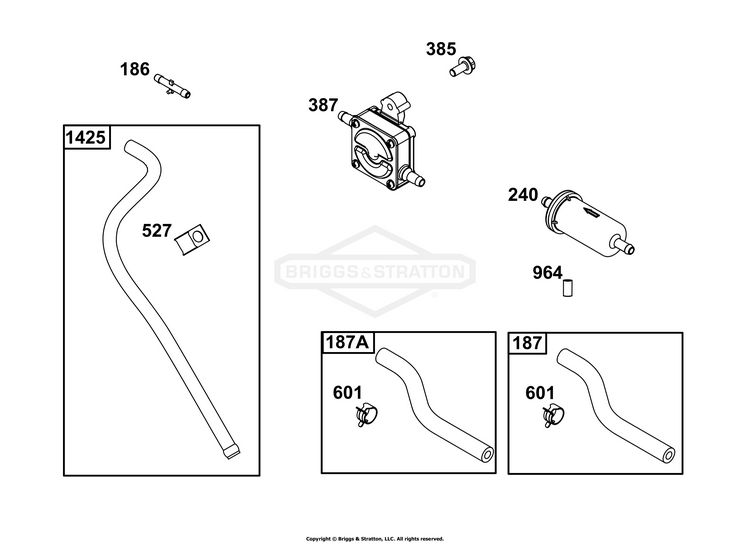

Fuel Supply Group

...
...
186
CONNECTOR, Hose BS-845121
...
187
LINE, Fuel BS-791766
...
187A
LINE, Fuel BS-791745
...
240
FILTER, Fuel BS-845125
...
385
SCREW (Fuel Pump) BS-807084
...
387
PUMP, Fuel BS-846824
...
527
CLAMP, Tube BS-807116
...
601
CLAMP, Hose BS-691038
...
964
CAP, Carburetor BS-807468
...
1425
HOSE, Purge Line BS-844712
