542477-0111-E1 Briggs and Stratton Engine

Model: 542477-0111-E1

Back To Assemblies

Save Part Not Listed?
product name

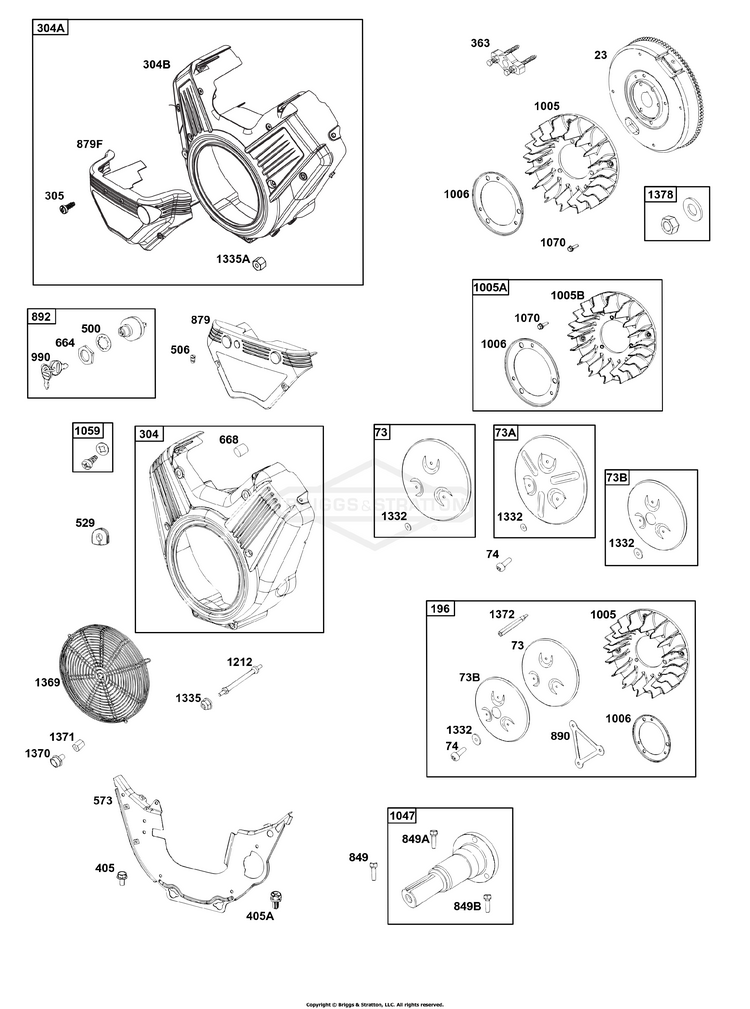

Blower Housings, Rotating Screens, Stub Shafts

...
...
23
FLYWHEEL BS-844385
...
73
SCREEN, Rotating Used After Code Date 05010900 BS-841840
...
73B
SCREEN, Rotating (Stub Shaft Hole) BS-842248
...
74
SCREW (Rotating Screen) BS-809947
...
196
GUARD, Flywheel Fan Used Before Code Date 05011000 BS-847200
...
304
HOUSING, Blower Used Before Code Date 23122100 (No Longer Available) (See Reference 304B for Service) BS-84008342
...
304
HOUSING, Blower Used Before Code Date 23122100 (No Longer Available) (See Reference 304B for Service) BS-84008342
...
304A
KIT, Blower Housing BS-84013457
...
304B
HOUSING, Blower Used After Code Date 23122000 BS-84011459
...
305
SCREW (Blower Housing) BS-807435
...
363
PULLER, Flywheel BS-19203
...
405
SCREW (Back Plate) (M6x10mm) BS-841233
...
405A
SCREW (Back Plate) (M6x14mm) Used After Code Date 14121500 BS-841735
...
500
WASHER (Key Switch) BS-691086
...
506
SCREW (Carburetor/EFI Cover) Used Before Code Date 11040800 BS-809957
...
529
GROMMET (Magneto Armature Wires) BS-690744
...
573
PLATE, Back BS-846840
...
664
NUT (Key Switch) BS-691087
...
668
SPACER (Blower Housing) BS-841974
...
849
SCREW (Stub Shaft) (M8x28mm) Used After Code Date 14112600 BS-846236
...
849B
SCREW (Stub Shaft) (M8x28.5mm) BS-846235
...
879
COVER, Carburetor/EFI Used Before Code Date 23122100 (No Longer Available) (See Reference 304B for Service) BS-809955
...
879F
COVER, Carburetor/EFI Used After Code Date 23122000 BS-84011180
...
890
BRACKET, Support (Rotating Screen) BS-809987
...
892
SWITCH, Key BS-692318
...
990
SET, Key BS-691959
...
1005
FAN, Flywheel Used After Code Date 15080600 BS-84006946
...
1005A
FAN, Flywheel Used Before Code Date 15080700 BS-847199
...
1005B
FAN, Flywheel Used Before Code Date 15080700 BS-846995
...
1006
RETAINER, Fan BS-847198
...
1059
KIT, SCREW/WASHER (Blower Housing) Used After Code Date 11040700 BS-84008343
...
1070
SCREW (Flywheel Fan) (M6x20mm) BS-807435
...
1212
STUD (Blower Housing) BS-809958
...
1332
WASHER (Rotating Screen) BS-809948
...
1335
NUT (Blower Housing) BS-690939
...
1335A
NUT (Blower Housing) BS-841537
...
1369
GUARD, Flywheel Fan BS-842858
...
1370
SCREW (Flywheel Fan Guard) (M6x10mm) BS-841233
...
1371
NUT (Flywheel Fan Guard) BS-841537
...
1372
FAN, Flywheel (Rotating Screen) BS-84006946
...
1378
SET, Washer/Nut (Flywheel) BS-844795
