540477-1117-G1 Briggs and Stratton Engine

Model: 540477-1117-G1

Back To Assemblies

Save Part Not Listed?
product name

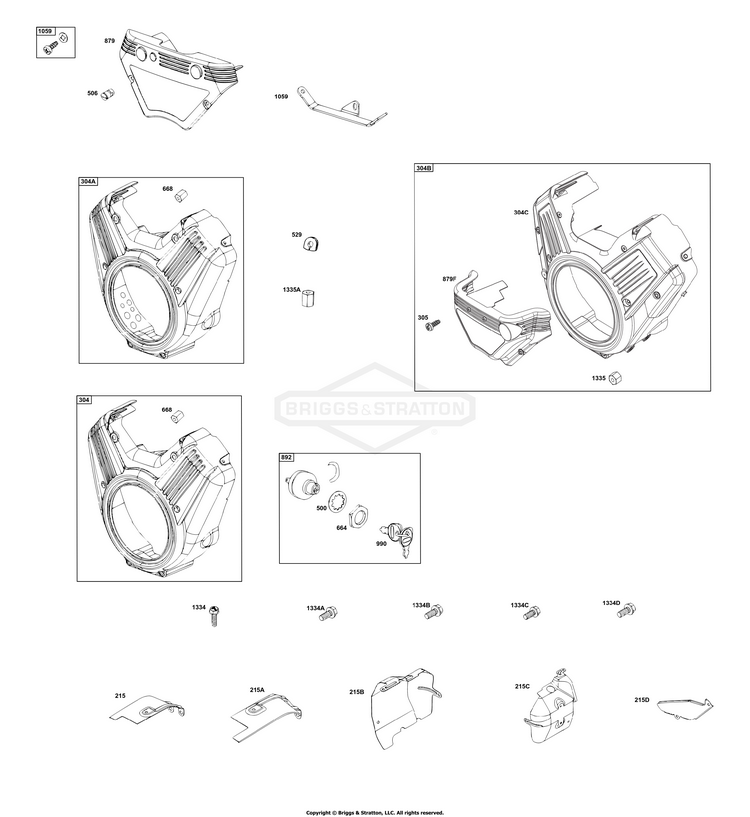

Air Guides, Blower Housings, Ignition Switch

...
...
215
GUIDE, Air (Cylinder 1) BS-809728
...
215A
GUIDE, Air (Cylinder 2) BS-809737
...
215B
SHIELD, Cylinder (Cylinder #2) BS-84013677
...
215D
GUIDE, Air (Valley) BS-809739
...
215C
SHIELD, Cylinder (Cylinder #1) BS-84013676
...
304
HOUSING, Blower Used Before Code Date 23122100 (No Longer Available) (See Reference 304B for Service) BS-84008342
...
304
HOUSING, Blower Used Before Code Date 23122100 (No Longer Available) (See Reference 304B for Service) BS-84008342
...
304B
KIT, Blower Housing BS-84013457
...
304C
HOUSING, Blower Used After Code Date 23122000 BS-84011459
...
305
SCREW (Blower Housing) BS-807435
...
500
WASHER (Key Switch) BS-691086
...
506
SCREW (Carburetor/EFI Cover) Used Before Code Date 11041300 BS-809957
...
529
GROMMET (Magneto Armature Wires) BS-690744
...
664
NUT (Key Switch) BS-691087
...
668
SPACER (Blower Housing) BS-841974
...
879
COVER, Carburetor/EFI Used Before Code Date 23122100 (No Longer Available) (See Reference 304B for Service) BS-809955
...
879F
COVER, Carburetor/EFI Used After Code Date 23122000 BS-84011180
...
890A
BRACKET, Support BS-841614
...
892
SWITCH, Key BS-692318
...
990
SET, Key BS-691959
...
1059
KIT, SCREW/WASHER (Carburetor/EFI Cover) Used After Code Date 11041200 BS-84008343
...
1334
SCREW (Air Guide) (M6x20mm) BS-807435
...
1334A
SCREW (Air Guide) (M6x10mm) BS-841233
...
1334B
SCREW (Air Guide) (M8x18mm) BS-692062
...
1334D
SCREW (Air Guide) (M6x14mm) BS-807084
...
1334C
SCREW (Air Guide) (M4x12mm) BS-690677
...
1335
NUT (Blower Housing) BS-841537
...
1335A
NUT (Blower Housing) BS-841537
