536.772342 Murray - Craftsman Edger (2005)

Model: 536.772342

Back To Assemblies

Save
Part Not Listed?Part Not Listed?
product name

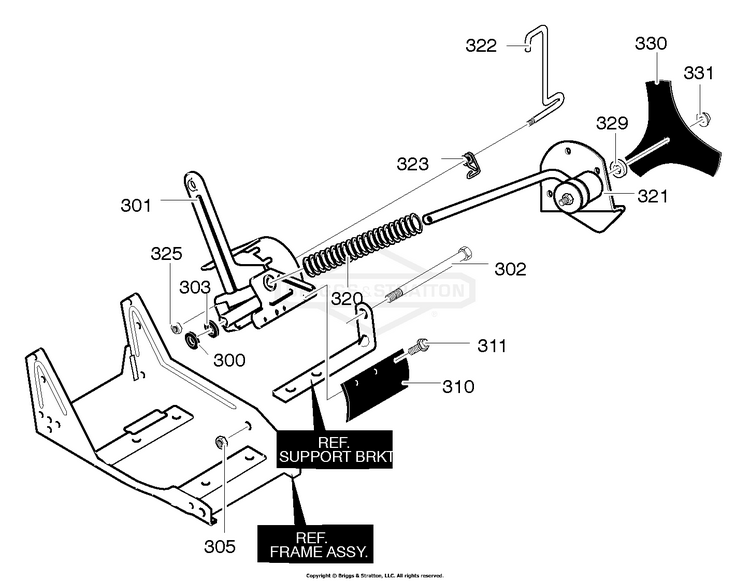

Quill Assembly

...
...
300
Flatwasher BS-710083

...
301
Quill Support BS-338656E201MA

...
302
Bolt, 3/8-16 BS-308254

...
303
Flatwasher BS-120396

...
305
NUT, 3/8-16 BS-703333

...
310
Rubber Deflector BS-308243MA

...
311
Screw, 10-16x1.50 BS-026X245

...
320

...
321
Quill Assembly BS-740039MA

...
322
Lever, Index BS-308466MA

...
323
Spring, Torsion BS-308155MA

...
325
Nut, 5/16-18 BS-1498

...
329
Flatwasher BS-22265MA

...
330
Blade, Edger BS-740296MA

...
331
Nut, 1/2-20 BS-46023MA
...
...
...
