536.772342 Murray - Craftsman Edger (2005)

Model: 536.772342

Back To Assemblies

Save
Part Not Listed?Part Not Listed?
product name

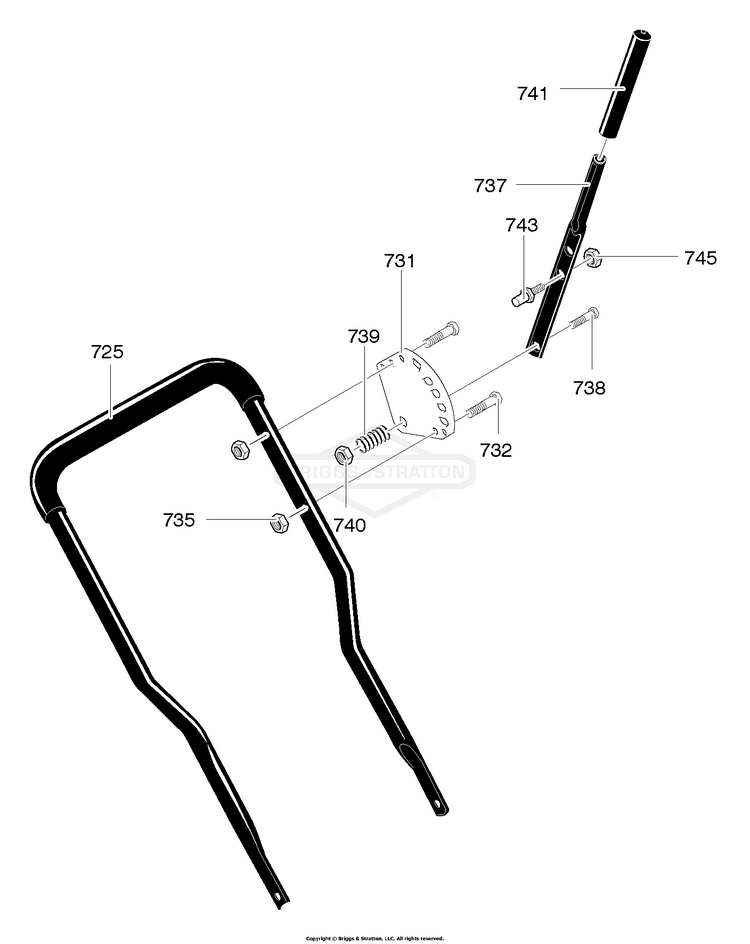

Upper Handle Assembly

...
...
725
Upper Handle BS-740147MA

...
731
Selector Plate BS-310052E701

...
732
CAPSCREW, 1/4-20X1.5 BS-703234

...
735
NUT, 1/4-20 BS-703251

...
737
Depth Adjust Handle BS-310050E701MA

...
738
Screw, 5/16-18 x 1.25 BS-180081MA

...
739
Spring, Compression BS-25644MA

...
740
Nut, 5/16-18 BS-1498

...
741
Grip, Hand BS-56924MA

...
743

...
745
NUT, 3/8-16 BS-703333
...
...
...
