536.772342 Murray - Craftsman Edger (2005)

Model: 536.772342

Back To Assemblies

Save
Part Not Listed?Part Not Listed?
product name

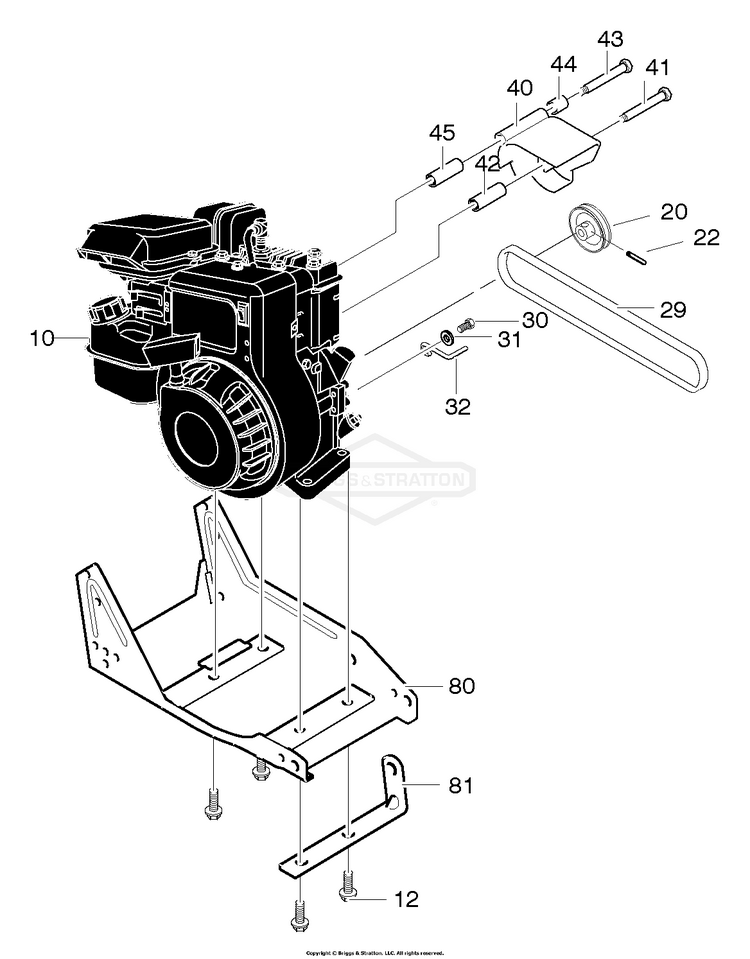

Engine & Frame Assembly

...
...
--
FRAME ASSY. (Part Not Shown - 2 Required) BS-1701036SM

...
12
Screw, 3/8-16 x 1.50 BS-0025X10

...
20

...
22
Screw, Set BS-120580

...
29
Belt, 4L 32.60" BS-32668MA

...
30
Screw 5/16-24x1.00 BS-578733MA

...
31
Flat washer BS-45602MA

...
32
Guide, Belt BS-51600MA

...
40
Cover, Engine Pulley BS-331281E201

...
41
Screw, 5/16-24 x 3.00 BS-181624MA

...
42
Spacer, Sleeve BS-315095MA

...
43
Screw, 5/16-24 x 3.75 BS-173030

...
44

...
45
Spacer, Sleeve BS-315095MA

...
80
Assembly, Frame BS-1701038E201

...

...
--
Instruction Manual BS-F-051101L
...
...
...
