536.772321 Murray - Craftsman Edger (2006)

Model: 536.772321

Back To Assemblies

Save Part Not Listed?
product name

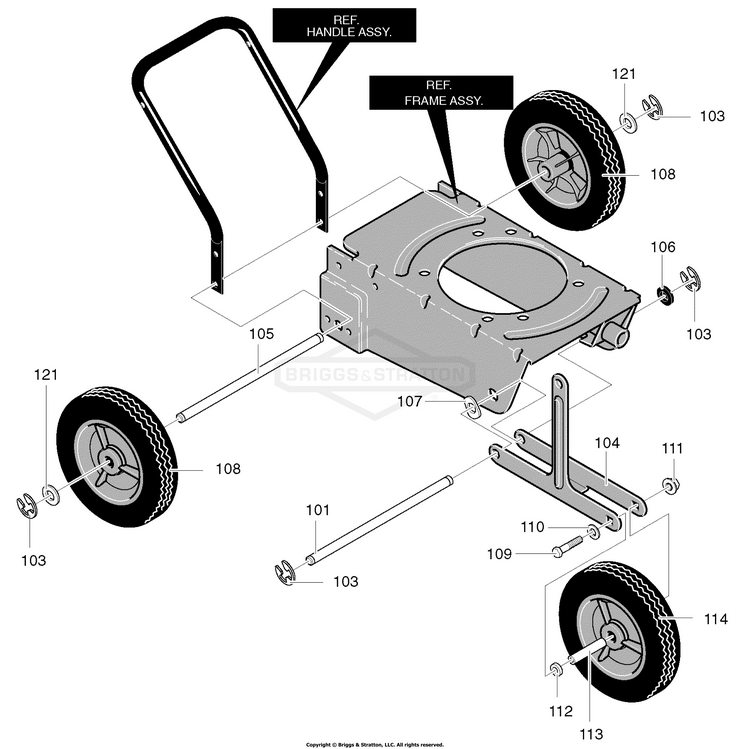

Wheel Assembly

...
...
101
Rod, Axle Front BS-740091
...
103
Ring, Ret E. BS-011X16
...
104
Arm, Front Wheel BS-740126E601
...
105
Rod, Axle R. BS-740095
...
106
Flat washer BS-417098
...
107
Spring Washer BS-0020X3
...
108
Tire & Rim BS-339079
...
109
Screw BS-180091
...
110
Flat washer BS-120393
...
111
NUT, HEX FLNG,5/16-18 BS-704067
...
112
Washer, Nylon BS-711008
...
113
Spacer, Sleeve BS-740046
...
114
Tire & Rim BS-339079
...
121
WASHER, Flat, 13/16 BS-017X91MA
