536.772321 Murray - Craftsman Edger (2006)

Model: 536.772321

Save
 Part Not Listed?Part Not Listed?
product name

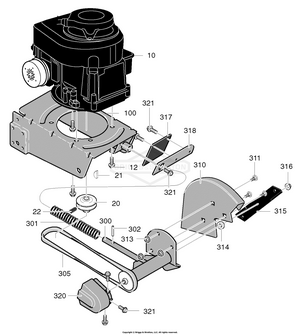

Frame Assembly

...
...
12
Bolt, Engine BS-0025X6MA
...
20
Pulley, V3L BS-52052
...
21
Key, Hi Pro #505 BS-338490
...
22
Screw, Set BS-120580
...
100
Frame, Edger BS-740121E601
...
300
Quill Assembly BS-339283
...
301
BRAKE LEVER ASMY BS-7051603YP
...
302
Spring Pin BS-412281
...
305
Belt, V4L BS-32668
...
310
Blade Guard BS-331076E601
...
311
BOLT BS-703159
...
313
NUT, HEX FLNG,5/16-18 BS-704067
...
314
Flat washer BS-22265
...
315
Blade, Edger BS-740297
...
316
NUT, 1/2-20 BS-46023
...
317
Deflector, Rubber BS-338582
...
318
Plate, Rubber Flap BS-337792E601
...
320
Belt Guard BS-336631
...
321
Screw, 10-16x.50 BS-26X245
...
-
Instruction Manual BS-MS3592

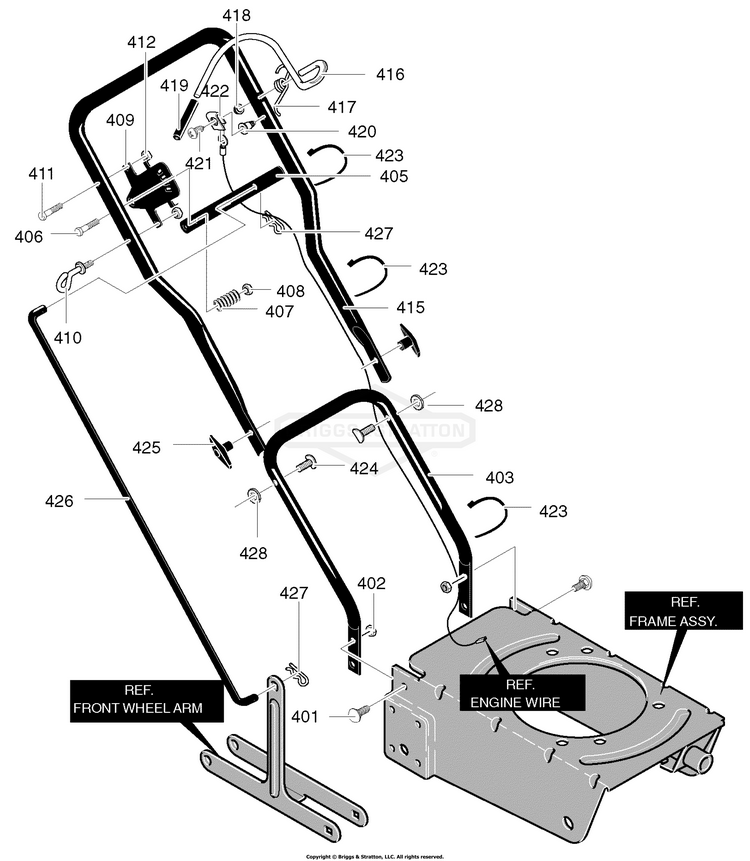

Handle Assembly

...
...
401
BOLT, 5/16-18X.75 BS-711558
...
402
NUT, 5/16-18 BS-015X79
...
403
Lower Handle BS-740128E701
...
405
Handle, Depth BS-740130E701
...
406
Screw BS-180081
...
407
Spring, Compression BS-25644
...
408
NUT, 5/16-18 BS-015X43
...
409
Brkt, Adj. Quadrant BS-740143E701
...
410
Rope Guide BS-672510
...
411
Screw, 1/4-20x1.25 BS-180024
...
412
NUT, 1/4-20 BS-703251
...
415
Upper Handle BS-740142E701
...
416
Bail, Operator Control BS-337744
...
417
Torsion Spring BS-337775
...
418
Nut, Push On BS-314276
...
419
Cap, Operator Control BS-339489
...
420
Insulator, Oper Control BS-339229
...
421
Screw, #6x.50 BS-57796
...
422
Clip, Grounding BS-340162
...
423
Cable Tie BS-071372
...
424
BOLT, 5/16-18X.75 BS-315288
...
425
Wing Knob 5/16-18 BS-071495
...
426
Rod, Control BS-740144E701
...
427
Hair Pin BS-36368
...
428
Washer BS-138485

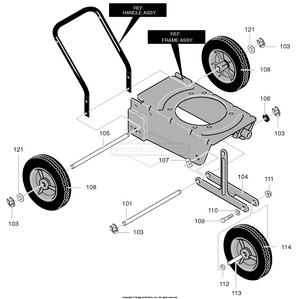

Wheel Assembly

...
...
101
Rod, Axle Front BS-740091
...
103
Ring, Ret E. BS-011X16
...
104
Arm, Front Wheel BS-740126E601
...
105
Rod, Axle R. BS-740095
...
106
Flat washer BS-417098
...
107
Spring Washer BS-0020X3
...
108
Tire & Rim BS-339079
...
109
Screw BS-180091
...
110
Flat washer BS-120393
...
111
NUT, HEX FLNG,5/16-18 BS-704067
...
112
Washer, Nylon BS-711008
...
113
Spacer, Sleeve BS-740046
...
114
Tire & Rim BS-339079
...
121
WASHER, Flat, 13/16 BS-017X91MA
...
...
...
