525607x692B Murray - Lawn Tractor (2002)

Model: 525607x692B

Back To Assemblies

Save Part Not Listed?
product name

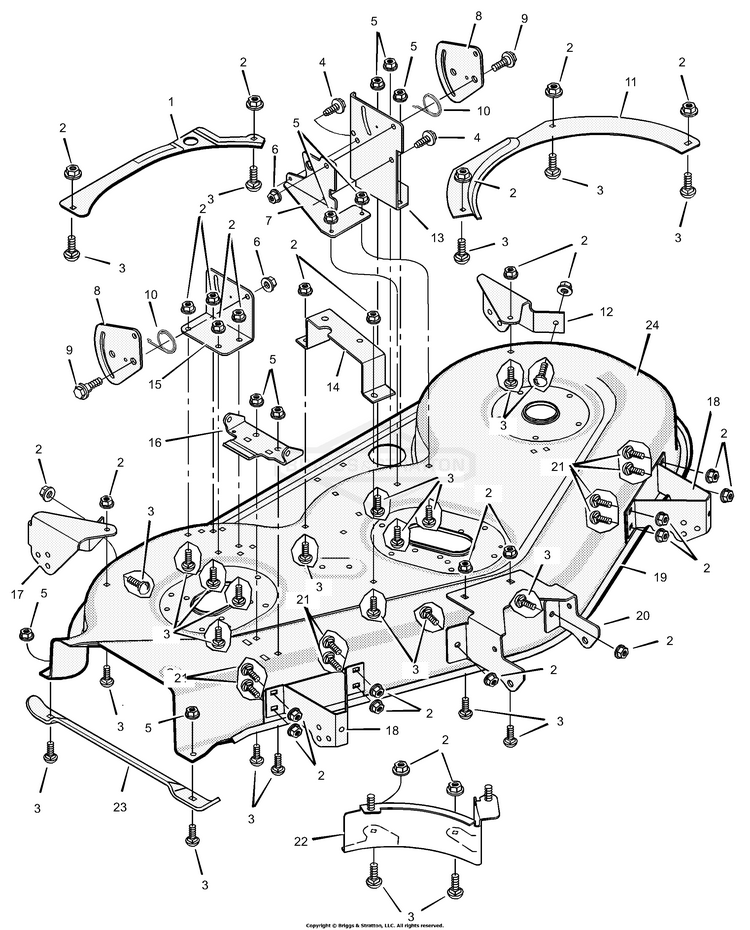

Mower Housing

...
...
1
Baffle, Right Bottom BS-094117E701
...
2
NUT, 5/16-18, GR5 BS-703409
...
3
BOLT BS-703159
...
4
Screw BS-26X249MA
...
5
NUT, HEX FLNG,5/16-18 BS-704067
...
6
NUT, CNTR LCK, 3/8-16 BS-703893
...
7
Brace, Hi Lifter BS-690078E701
...
8
Plate, Suspension BS-1001154E701
...
9
BOLT-SHD.38-16X.499D BS-009X51MA
...
10
Spring, Torsion BS-166X42MA
...
11
Baffle, Left Bottom BS-094118E701
...
12
Bracket, Rear Gage Wheel BS-094717E700
...
13
Bracket, Left Lifter BS-690164E701
...
14
Bracket, Bellcrank BS-690118E700
...
15
Bracket, Right Lifter BS-094694E700
...
16
Bracket, Hinge BS-092104E701MA
...
17
Bracket, Rear Gage Wheel BS-094716E700
...
18
Bracket, Front Gage Wheel BS-1001272E700
...
19
Assembly, Reinforcement BS-1001181E700
...
20
BRKT, FRONT DECK 50" BS-7300802DYP
...
21
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
22
Assembly, Baffle BS-690135E701
...
23
Bracket, Chute Support BS-095176E701MA
