525607x692B Murray - Lawn Tractor (2002)

Model: 525607x692B

Back To Assemblies

Save Part Not Listed?
product name

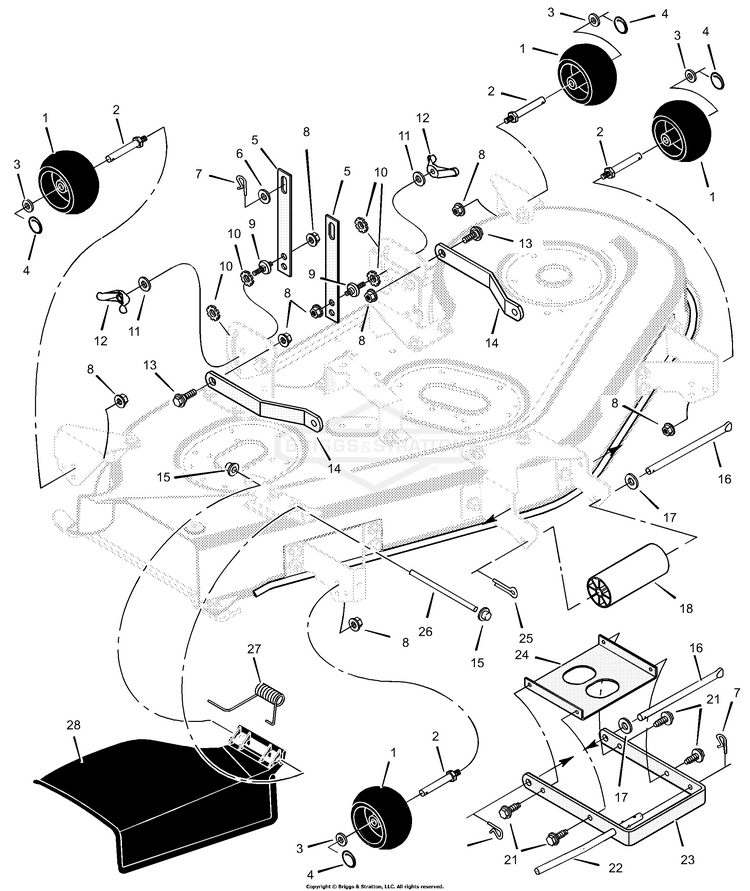

Mower Housing Suspension (part 2)

...
...
1
Wheel, Gage BS-092265MA
...
2
BOLT, Gauge Wheel BS-094025MA
...
3
Washer BS-017X91MA
...
4
Pin, Hair BS-031X11MA
...
5
Link, Lift BS-690550E701MA
...
6
Washer BS-017X91 Z
...
7
PIN, 3/32 X 1.6 BS-703300
...
8
NUT, CNTR LCK, 3/8-16 BS-703893
...
9
PIN, Hanger BS-095194MA
...
10
Washer BS-019X44MA
...
11
WASHER,FLAT .33 1. 16 BS-017X45MA
...
12
Wingnut BS-095004MA
...
13
Bolt, Shoulder BS-009X52MA
...
14
Bracket, Rear Suspension BS-094055E701MA
...
15
PUSHNUT, 3/8 BS-703948
...
16
Rod, Deck Suspension BS-094996MA
...
17
Washer BS-17X103MA
...
18
Roller BS-1001252MA
...
21
Screw BS-26X249MA
...
22
Rod, Hanger BS-094158ZMA
...
23
Bracket, Front Suspension BS-690539E700
...
24
Stiffener BS-094604E700
...
25
Pin, Cotter BS-030X49MA
...
26
Rod, Deflector BS-092159ZMA
...
27
Spring, Torsion BS-166X34MA
...
28
Deflector, Chute BS-092100MA
