525607x692B Murray - Lawn Tractor (2002)

Model: 525607x692B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

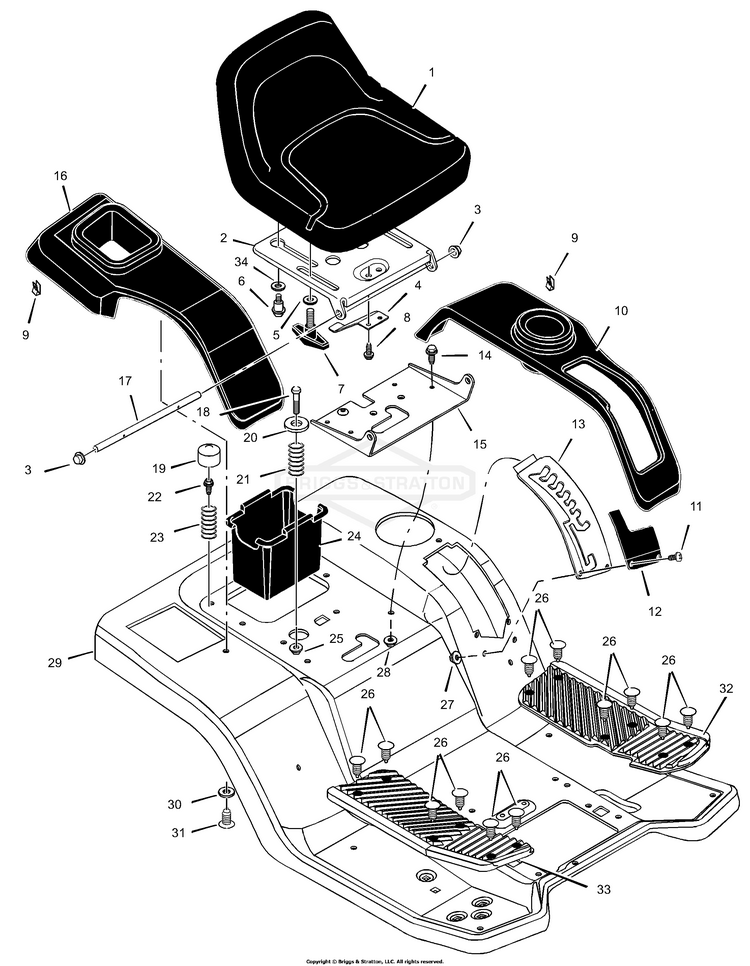

Rear Body

...
...
1
SEAT ADAPTOR KIT BS-1687498YP
...
2
Support, Seat BS-094154E700
...
3
PUSHNUT, 3/8 BS-703948
...
4
Spring, Leaf BS-094057MA
...
5
WASHER, FLAT 5/16 BS-704015
...
6
Bolt, Shoulder BS-009X56MA
...
7
Bolt, Wing BS-1001054MA
...
8
Screw BS-26X229MA
...
9
U-Clip BS-1001218MA
...
10
Panel, Left Shoulder BS-1001095
...
11
Bolt, Shoulder BS-009X47MA
...
12
Cover, Detent Lockout BS-094483
...
13
Plate, Lift Detent BS-094194
...
14
CAPSCREW,5/16-18X.625 BS-703822
...
15
Bracket, Pivot BS-1001648E701MA
...
16
Panel, Right Shoulder BS-1001094
...
17
Rod, Pivot BS-094156ZMA
...
18
Bolt, Shoulder BS-009X55MA
...
19
Cap BS-020107MA
...
20
Washer, Cup BS-094155 Z
...
21
SPRING, Compression BS-164X31MA
...
22
Screw BS-26X249MA
...
23
Spring, Compression BS-164X30MA
...
24
Container, Battery BS-690424MA
...
25
NUT .25-20 FLANGELOCK BS-015X89MA
...
26
Fastener, Panel BS-0193X1MA
...
27
NUT#10-24 MCLEANLOCK BS-015X81MA
...
28
NUT, HEX, 5/16-18 BS-703902
...
29
Deck, Seat BS-1001099E700
...
30
Washer BS-17X207
...
31
Screw BS-26X284MA
...
32
Mat, Left BS-095408MA
...
33
Mat, Right BS-095409MA
...
34
WASHER BS-703128
